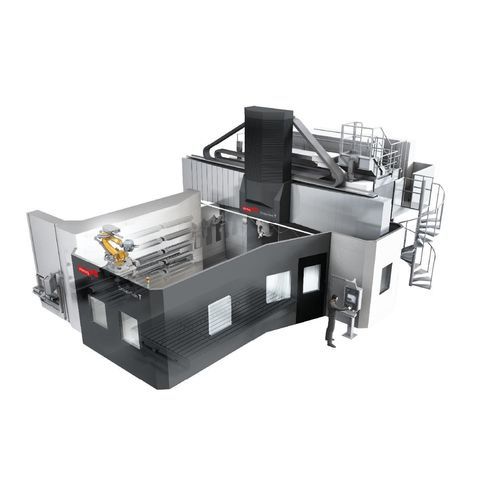

5-axis machining center Droop+Rein T & TF

verticalfor steelfor cast iron

Portal design The versatile table moving machines designed and built by Droop+Rein have one thing in common: unmatched rigidity in its power class combined with highest flexibility in size and configuration. With the T/TF series, Droop+Rein offers gantry machining centres for heavy-duty machining in many sectors: applications range from tool and mould making, aircraft component manufacturing and engine manufacturing to general mechanical engineering. Based on the robust, highly accurate and powerful basic machines, the T/TF series offers an extensive system of innovative automation and expansion stages that enable the machines to be adapted flexibly to each machining task. 5-axis machining center The optional automatically changing fork-type milling head makes complex and demanding machining possible. Through extensive application know-how, a variety of different milling heads are available - including vertical milling heads, angle milling heads, and fork-type milling heads for positional or simultaneously controlled applications. Unique advantages - Best in class for applications in general engineering, power generation, large engine, landing gear and mould & die industry - Powerful: Heavy duty machining with up to 150 kW spindle power and 12,000 Nm torque. Continuous 5-axis machining in heavy duty applications. Various controls, milling heads, table configurations and automatic head and tool changers. - Rigid: Cross rail moveable (T) or fixed (TF). Highest long term accuracy due to advanced structure components (cast iron/welded steel) and hydrostatic guideways. Flexible customisation achieved through modular principle.
