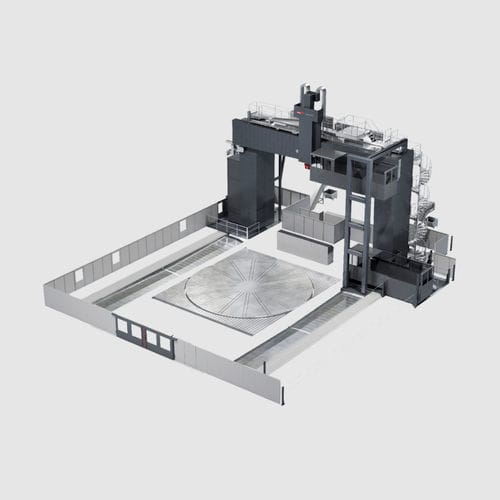

5-axis CNC machining center Droop+Rein G & GF

6-axisverticalgantry

For machining of largest and heaviest workpieces Droop+Rein offers a floor guided gantry machine line. Best accessibility and utilisation of floor space for largest workpieces combined with highest flexibility in size and configuration. How can large, heavy-duty and bulky workpieces be processed without adversely affecting the weight and size of the machining result? The Droop+Rein G series has been specifically developed to tackle this difficult task. The gantry machines reliably prevent dynamic losses through the table and workpiece. The G series has many technical highlights to meet the requirements of complex machining tasks, such as the hydrostatic guide in all linear axes or the thermo-symmetrical design of the spool milling unit with an integrated C-axis. Milling heads can be changed automatically via a head change interface. Highlights Wear-free hydrostatic guideways for highest loads and forces Advanced structure components design (cast iron/welded steel) High level of rigidity and stiffness Thermo-symmetric structure of the ram with integrated C-axis Milling spindle up to 150 kW spindle power and 12,000 Nm torque Large selection of automatically exchangeable milling heads Continuous 5-axis capability C- and B-axis hydraulically clamped in position or mechanically indexed Cross rail moveable as positioning or continuous W-axis Floor plate for cubic workpieces Rotary table for rotation-symmetric components (mill-turn) Comprehensive peripheral devices Advanced Starrag diagnostics system High level of energy efficiency Industrie 4.0 proven by Starrag IPS
