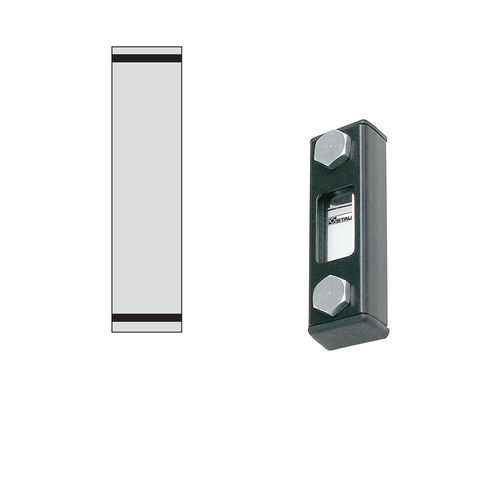

Liquids level gauge SNA-076

sight glassvisualmetal

Product overview
Visual level gauge, Type SNA-076. Nominal size: 76 mm / 2.99 in. Housing: steel, coated. Sight tube: polyamide (PA). Scale plate: PVC, neutral design. Sealings: NBR. Without thermometer. Banjo bolts: M10. STAUFF Material No.: 1910000088.

Series / Identification

• Series: 076
• Product designation: SNA-076-B-N-O-10
• STAUFF Material No.: 1910000088

Kit / Bill of materials (individual components)

• Banjo-bolt-SNA-M10 — Material No. 1930000003 — Required quantity: 2 pieces
• MUSP-M10-DIN6923-nearly-W32-SNA/SNK — Material No. 1930000052 — Required quantity: 2 pieces
• Flat-seal-27x10x2-B65 — Material No. 1930000056 — Required quantity: 2 pieces

Additional product information

• Scale plate design: Neutral
• Banjo bolt: M10
• Thermometer: Without thermometer
• Gross weight: 0.182 kg
• Country of origin: Germany
• Customs tariff number: 90261089
• Packaging unit: 25 pieces

Technical specifications

• Type: Visual level gauge, Type SNA-076
• Nominal size: 76 mm / 2.99 in
• Housing: Steel, coated
• Sight tube: Polyamide (PA)
• Scale plate material: PVC
• Scale plate design: Neutral
• Sealings: NBR
• Thermometer: Without thermometer
• Banjo bolts: M10
• Series: 076
• STAUFF Material No.: 1910000088
• Gross weight: 0.182 kg
• Country of origin: Germany
• Customs tariff number: 90261089
• Packaging unit: 25 pieces
