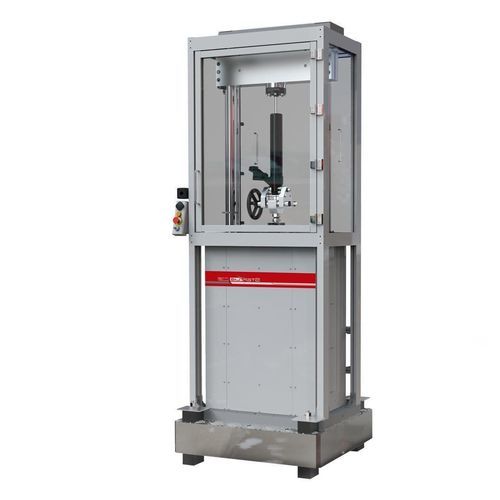

Electrodynamic shaker KUD series

Product overview
KUD is the electrodynamic series for high-dynamic durability testing of shock absorbers and suspension systems. Designed as a replacement for hydraulic rigs, the KUD series delivers peak forces up to 160 kN and continuous dynamic loads up to 82 kN while supporting high speeds and long-duration cycles.

Short specs
Max. continuous dynamic force: 82 kN
Max. peak force: 160 kN

Type of test

• Duration (long-term fatigue/durability)
• Reliability and performance validation

Applications

• Shock absorbers and dampers
• Suspension components and sub-assemblies

Features (high level)

• Special linear guides engineered for multi-billion cycle life
• Electrodynamic linear motors with reduced inertia
• Optimised cooling system for continuous and extended tests
• Closed-loop force and displacement control via Test Center controller
• Support for optional hardware to cover a wide range of performance tests
• Generation of diverse waveforms: sine, triangular, square, sine-on-sine, sine sweep, double-speed sine/triangular, block cyclic
• 24-bit high-resolution data acquisition
• Separate, independent control station
• PC-based Test Center graphical interface for flexible test management
• Wide selection of grips, dedicated test accessories and load cells
• Integration capability with extensometers and climatic chambers

Advantages

• Dynamic performance suitable for high-frequency durability protocols
• Minimal maintenance due to absence of mechanical transmission
• Lower electrical consumption attributable to efficient electric motors
• Flexible geometric configuration and multi-sample support
• Plug & Play installation
• Competitive acquisition cost relative to hydraulic alternatives

Technical data (table)
KUD SERIES | KUD030 | KUD040 | KUD060 | KUD080 | KUD160
Version | STD / L1 / L2 | STD / L1 / L2 | STD / L1 / L2 | STD / L1 / L2 | STD / L1 / L2
Cont. dynamic load [kN] | 15 | 20 | 30 | 41 | 82
Peak load [kN] | 30 | 40 | 60 | 80 | 160
Speed at cont. load [m/s] 400VAC | 1.25 / 2.5 / 4.2 | 1.25 / 2.5 / 4.2 | 1.25 / 2.5 / 4.2 | 1.25 / 2.5 / 4.2 | 1.25 / 2.5 / 4.2
Speed at cont. load [m/s] 480VAC | 1.5 / 3 / 5 | 1.5 / 3 / 5 | 1.5 / 3 / 5 | 1.5 / 3 / 5 | 1.5 / 3 / 5
Max speed [m/s] | 2 / 3 / 6 | 2 / 3 / 6 | 2 / 3 / 6 | 2 / 3 / 6 | 2 / 3 / 6
Max Stroke [mm] | 200 / 300 (available across models)
Specimens | Multiple
Linear Guides | New special guides
Anti-rotational system | Included
Floor connection | Rigidly connected to the floor or on air springs

Technical characteristics / specifications

• Series name: KUD series
• Max continuous dynamic load: up to 82 kN
• Peak load capability: up to 160 kN
• Available models: KUD030, KUD040, KUD060, KUD080, KUD160
• Version options per model: STD, L1, L2
• Speed at continuous load (400 VAC): up to 4.2 m/s (depending on version)
• Speed at continuous load (480 VAC): up to 5 m/s (depending on version)
• Max speed: up to 6 m/s
• Max stroke: 200 mm or 300 mm
• Specimens: multiple (multi-sample configuration supported)
• Anti-rotational system: included
• Guides: special guides for extremely long-life testing
• Motor/actuation: electrodynamic linear motors (no mechanical transmission)
• Control & DAQ: closed-loop force and displacement control, 24-bit high-resolution data acquisition, PC-based Test Center interface
• Integration: extensometer and climatic chamber support; wide range of grips, accessories and load cells supported
