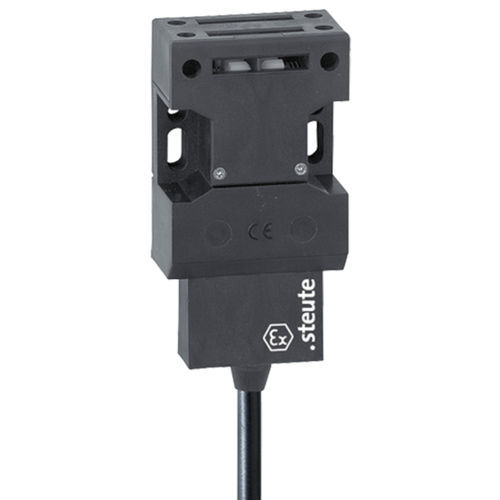

Multipole switch Ex AZ 16 1Ö/1S

reinforcedself-extinguishingIP67

Ex zone 22 Thermoplastic enclosure Multiple coding With pre-wired cable 30 N latching force Suitable for front mounting Applied standards EN 60947-5-1, EN IEC 60079-0, EN 60079-1, EN 60079-31, EN ISO 13849-1, EN ISO 14119 Enclosure thermoplastic, glass-fibre reinforced, impact resistant, self-extinguishing UL 94 V-0 Switch type type 2 Coding level low coding B10d (10 % load) 2 million TM max. 20 years Switch insert 1 x Ex 13 Contact material silver Switching system slow action, positive break NC contacts A Switching elements 1 NC/1 NO contact, type Zb Connection pre-wired cable H05VV-F Cable cross-section 4 x 0.75 mm² (incl. conductor ferrules) Conventional thermal current Ithe T6: 6 A, T5: 3 A Utilisation category AC-15; DC-13 Short-circuit protection 6 A gG/gN fuse Positive break force approx. 15 N Mechanical life > 1 million operations Impact energy max. 7 J Ex marking L II 3D Ex tc IIIC T80°C/T95°C Dc X
