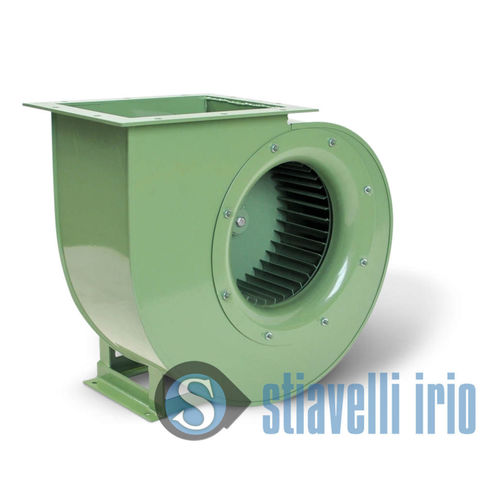

centrifugal fan / cooling / drying / ventilation
YVP/P Series

{{requestButtons}}

Characteristics

  • Configuration:

    centrifugal

  • Function:

    cooling, drying, ventilation

  • Other characteristics:

    direct-drive, belt-driven, low-pressure, with forward-curved blades, industrial

  • Air flow:

    Max.: 115,000 m³/h (4,061,186.67 ft³/h)

    Min.: 180 m³/h (6,356.64 ft³/h)

Description

RANGE
V (m³/h) = 180÷115000
Pt (kg/m²) = 13÷240

FEATURES
Centrifugal low pressure industrial fan.
Forward curved blades impeller.
Direct-coupled motor with impeller splined on the shaft or Belt drive transmission.

TEMPERATURE
Temperature allowed:

Direct-coupled: Maximum fluid temperature allowed is 80°C or 150 °C if a cooling fan is installed
Belt Drive: Maximum fluid temperature allowed is 90°C or 350°C if a cooling fan is installed
In case of higher temperatures, some modifications to the fan structure are needed.

TYPICAL APPLICATIONS
This type of low pressure Industrial fan is suitable to suck clean or slightly dusty air.

Ventilation systems
Conditioning
Drying processes
Cooling processes
Mechanical draught
Fumes/gas elimination
Humidity regulation
