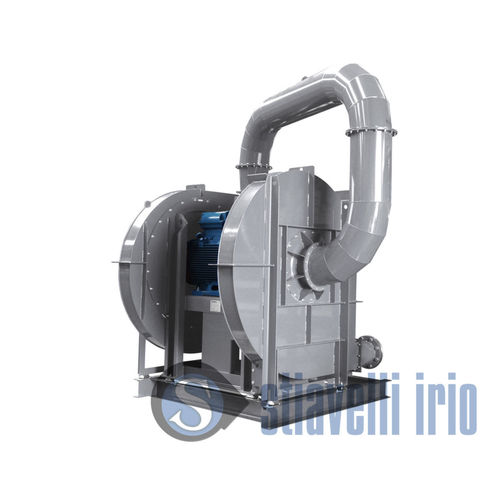

Centrifugal fan YHPR…D Seriesdryinghigh-pressureindustrial
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- drying
- Other characteristics
- high-pressure, industrial
- Air flow
Max.: 24,000 m³/h
(847,552.001 ft³/h)Min.: 600 m³/h
(21,188.8 ft³/h)
Description
RANGE
V (m³/h) = 600÷24000
Pt (kg/m²) = 1230÷5100
FEATURES
Very High Pressure Double Stage Industrial Fans.
High-efficiency backward blades impeller.
Direct-coupled double shaft motor with impeller splined on the shafts.
TEMPERATURE
Temperature allowed:
Direct-coupled: Maximum fluid temperature allowed is 80°C or 150 °C if a cooling fan is installed
In case of higher temperatures, some modifications to the fan structure are needed.
TYPICAL APPLICATIONS
This type of fan is suitable to suck clean, slightly dusty air.
Oxygenation of impure waters
Pneumatic conveyances
Cement factories
Mills
Pasta factories
Dye Works
Drying wool
Ceramic Factories
Chemical industry
