Hydraulic press 1300 HE - Rail
manualbendingstraightening

hydraulic press
hydraulic press
hydraulic press
hydraulic press
hydraulic press
hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
hydraulic, manual
Function
bending, straightening
Other characteristics
horizontal, universal
Force

Min.: 130 kN

Max.: 1,300 kN

Hydraulic pump power

7.5 kW

Overall height

300 mm
(12 in)

Description

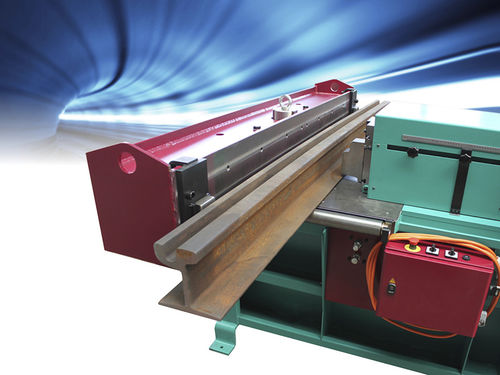

The “1300 HE - RAIL” stationary rail bending and straightening system is used for universal bending and straightening of smaller rails in rail and points construction. The horizontal design facilitates simple handling and transport of the rails. With the long cylinder stroke, the rails can be machined upright or horizontally. The tool height of 300 mm allows for straightening and bending of all standard rail profiles. As an option, the abutments can be set electro-mechanically to the rail profile required. With the quick-change tool system, the machine can be refitted for a different rail profile very quickly. The operator is assisted by the manual control with fine stroke adjustment which is easy to operate. An optional laser system supports the operator when bending and straightening the rails: Bending grooved rails Bending Vignoles rails Bending and straightening tongue rails (tongue rail straightening machine) Bending special rails Bending rails by folding Straightening rails
