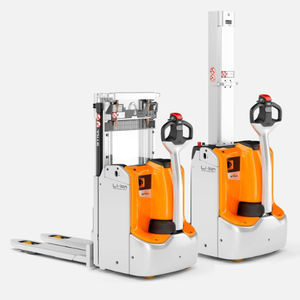

Electric stacker truck EXD-SF 20
stand-onwith rider platformplatform

Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 2
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 3
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 4
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 5
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 6
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 7
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 8
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 9
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 10
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 11
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 12
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 13
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 14
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 15
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 16
Electric stacker truck - EXD-SF 20 - STILL - stand-on / with rider platform / platform - image - 17
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
with rider platform, stand-on, platform
Voltage
24 V
Applications
handling, for warehouse, transport, for pallet, for lifting, loading, unloading, double-pallet, traction
Other characteristics
compact, high-performance, steel, high-lift, high-speed, air-cushioned
Carrying capacity

1,000 kg, 2,000 kg
(2,204.6 lb, 4,409.2 lb)

Lifting height

2,924 mm
(115.12 in)

Free lift

Min.: 150 mm
(5.9 in)

Max.: 1,395 mm
(54.9 in)

Overall width

720 mm
(28.3 in)

Overall length

2,185 mm
(86 in)

Fork width

180 mm
(7.1 in)

Fork length

1,190 mm
(46.85 in)

Turning circle radius

1,972 mm, 2,410 mm
(77.6 in, 94.9 in)

Battery capacity

375 Ah

Motor power traction

2.3 kW
(3.127 hp)

Motor power lifting

2.2 kW
(2.991 hp)

Travel speed

10 km/h
(6.21 mph)

Lifting speed

Min.: 0.05 m/s
(0.164 ft/s)

Max.: 0.22 m/s
(0.722 ft/s)

Weight

1,424 kg
(3,139.38 lb)

Description

Twice the load – half the time Speeds of up to 10 km/h and a maximum lifting capacity of up to 2,000 kg enable high handling rates Fatigue-free and comfortable working thanks to air-cushioned stand-on platform with integrated compressor Convenient on ramps: hydraulically dampened support wheels for optimal traction Are you looking for an ideal option for horizontal transport over medium and long distances with double the performance? Look no further than the EXD-SF! With the double deck functionality, you can transport two pallets up to 1,000 kg each – the perfect solution for the fast handling of pressure-sensitive goods such as fruit or vegetables. Alternatively, you can transport a single pallet weighing up to 2,000 kg. To save you running out of steam even over long stretches, the EXD-SF offers a fold-out, air-sprung stand-on platform. The fold-out, heightadjustable side arms also guarantee safe driving at up to 10 km/h. STILL Dynamic Drive Control adjusts the driving speed dynamically to the current conditions and guarantees optimal and reliable handling rates in all situations. In addition, the EXD-SF can be operated with one hand and impresses thanks to its hydraulically dampened support wheels with excellent traction and optimal driving convenience – even on ramps and when loading/unloading trucks. The EXD-SF 20 in detail Simply easy Smooth electrical steering and intuitive operation of all functions for left- and right-handed operators with STILL Easy Drive steering wheel Easy access and optimal protection for the operator’s back and joints: low access point and air-cushioned stand-on platform optionally available with integrated compressor
