Electric stacker truck EXD series
walk-behindwith rider platformdouble-pallet

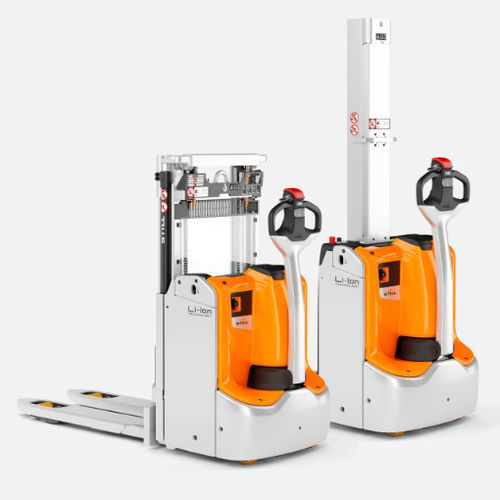

Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet
Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet
Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet - image - 2
Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet - image - 3
Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet - image - 4
Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet - image - 5
Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet - image - 6
Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet - image - 7
Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet - image - 8
Electric stacker truck - EXD series  - STILL - walk-behind / with rider platform / double-pallet - image - 9
Add to favorites
Compare this product

Characteristics

Energy
electric
Operator
walk-behind, with rider platform
Applications
handling, for warehouse, transport, for lifting, loading, narrow-aisle, storage, unloading, double-pallet
Other characteristics
compact, high-performance, high-lift, with platform, with elevating support arm
Carrying capacity

1,800 kg, 2,000 kg
(3,968.3 lb, 4,409.2 lb)

Lifting height

1,724 mm
(67.87 in)

Free lift

Min.: 150 mm
(5.9 in)

Max.: 1,730 mm
(68.1 in)

Overall width

720 mm
(28.3 in)

Overall length

Min.: 1,742 mm
(68.6 in)

Max.: 1,955 mm
(77 in)

Fork width

182 mm
(7.2 in)

Fork length

1,190 mm
(46.85 in)

Turning circle radius

Min.: 1,512 mm
(59.5 in)

Max.: 1,749 mm
(68.9 in)

Battery capacity

62 Ah, 125 Ah, 150 Ah, 250 Ah

Motor power traction

1.3 kW
(1.768 hp)

Motor power lifting

1.2 kW
(1.632 hp)

Travel speed

5 km/h, 6 km/h
(3.11 mph, 3.73 mph)

Weight

Min.: 621 kg
(1,369.07 lb)

Max.: 858 kg
(1,891.57 lb)

Description

Does double duty! Are you looking for a flexible double stacker truck that can effortlessly handle loads up to 2,000 kg? That gives you efficient and powerful support when loading and unloading lorries, and allows maximum handling in the smallest of spaces? Then the new EXD 18C-20C is the perfect solution for you. With its slim vehicle contour and impressively small turning circle, the double stacker is perfect for tight warehouse environments and all other applications where saving space is an important success factor. But it not only saves space, it also saves time. Where others simply stack, the EXD 18C-20C does double duty. It can carry loads of up to 1,000 kg on its wheel arms and a further 800 to 1,000 kg on its forks. At the same time, the IFOY award-winning STILL tiller can be operated intuitively and ergonomically with just one hand - left or right. The large display in the tiller head summarises all relevant information in a transparent and language-neutral manner. With its slim mono mast, the EXD 18C also provides a clear view of the forks and load - for maximum efficiency, optimum ergonomics and reliable safety for operator, truck and goods. Efficiency in the smallest of spaces: agile, slim and powerful, the EXD 18C-20C makes better use of available storage space than any other Safe and ergonomic on all routes thanks to the award-winning STILL tiller with OptiSpeed function Everything in view: the slim mono mast on the EXD18C allows a clear view of the forks at all times
