Acid hose
synthetic rubberEPDMSBR

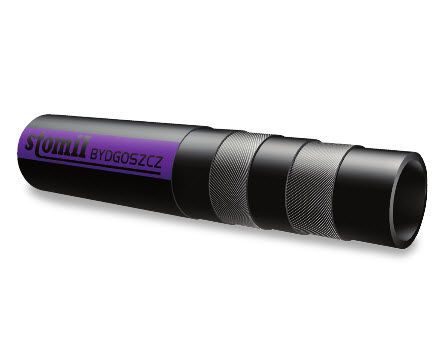

Acid hose - Stomil Bydgoszcz - synthetic rubber / EPDM / SBR
Acid hose - Stomil Bydgoszcz - synthetic rubber / EPDM / SBR
Add to favorites
Compare this product

Characteristics

Use
for acids
Material
synthetic rubber, EPDM, SBR, synthetic
Applications
industrial
Other characteristics
smooth
Inner diameter

Min.: 6.3 mm
(0.248 in)

Max.: 80 mm
(3.15 in)

Outer diameter

Min.: 13 mm
(0.512 in)

Max.: 92 mm
(3.622 in)

Pressure

16 bar
(232.06 psi)

Temperature

Min.: -30 °C
(-22 °F)

Max.: 60 °C
(140 °F)

Delivered length

Min.: 20 m
(65'07" )

Max.: 50 m
(164'00" )

Description

This hose is resistant to many chemicals including: – Nitric acid concentrated up to 5% – Hydrochloric acid concentrated up to 20% – Sulfuric acid concentrated up to 50% – Acetic acid, water solution of sodium hydroxide, water solution of ammonia in any concentration. It is resistant to abrasion, weathering and ozone. CONSTRUCTION According to PN-86/C-94250/44 Inner tube High quality SBR black synthetic rubber resistant to acids and alkalis. Reinforcement Interlayers made of textile cord or synthetic threads. Cover Black, weather and ozone resistant SBR/EPDM synthetic rubber. Hoses up to DN 12,5 in diameter have smooth surface. Larger diameters have cloth impression. Method of marking Diameters smaller then DN 12 are marked with white print. Larger diameters are marked with a purple tape.
