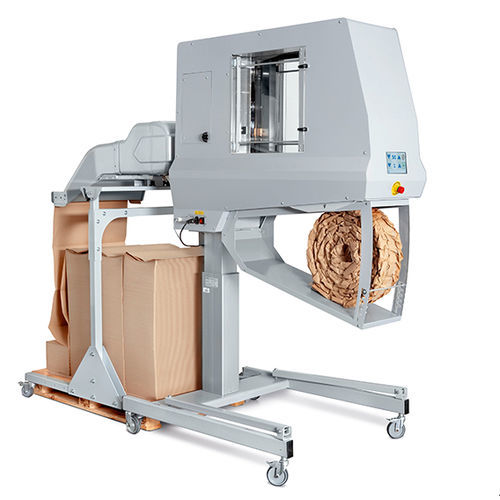

Paper protective packaging machine PAPERplus® Coiler

compact

Overview
The PAPERplus® Coiler converts preformed paper pads into coils of paper cushioning designed for large, heavy and fragile products. Intended for manufacturers and service providers handling bulky shipments, the system produces coils adapted to product size and weight and works with PAPERplus® Classic CX and PAPERplus® Track.

Key benefits

• Creates robust, flexible paper coils suitable for heavy goods
• Coil size and firmness adjustable to match product geometry and protection needs
• Optimises packaging material use by configuring coil diameter and compactness
• Automatic adhesive dots secure coils for safe handling and storage

Operation & performance
The machine processes preformed paper pads from compatible PAPERplus® machines and produces coils for products weighing between 30 and 500 kg. Production capacity depends on product dimensions; as a reference, coils can equip up to approx. 200 cartons per day. A touch-screen interface allows setting coil diameter (20–50 cm), firmness level and compactness (compact or looser coils). Adhesive dots are applied automatically to fix the finished coil.

Compatibility
PAPERplus® Coiler is designed to be fed with paper pads produced by PAPERplus® Classic CX and PAPERplus® Track machines and is compatible with the paper formats they deliver.

Use cases

• Protection and bracing of heavy, bulky and fragile items during transport and handling
• Packaging operations requiring tailored cushioning per product type and size
• Processes aiming to reduce material use while ensuring handling efficiency

Technical specifications

• Suitable product weight range: 30–500 kilograms
• Coil diameter (configurable): 20–50 centimetres
• Output performance: up to approx. 200 cartons per day (depending on goods size)
• Coil firmness: selectable (various degrees)
• Coil compactness: selectable (compact or looser)
• Control: touch-screen display for parameter settings
• Fixation: automatic adhesive dots
• Compatible with: PAPERplus® Classic CX and PAPERplus® Track
