Hydraulic fitting X33-1 series

for vacuumweld-onT-shaped

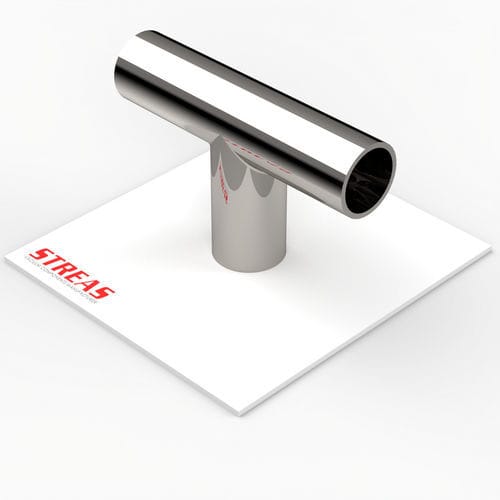

Welded tee for vacuum and fluid transfer, designed for TRS line (type DD). Available in AISI 304 and AISI 316 stainless steels with polished external finish and raw internal finish. Multiple diameters and wall thicknesses available to suit industrial piping and vacuum systems.

Key information:

• Line: TRS
• Line type: DD
• Product type: Welded tee
• Materials: AISI 304, AISI 316
• Finishes: Mechanical polished exterior / raw interior, fully raw

Items (selection of variants shown in table):

• Code: X33-1-0509 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 14 mm (0.552 in) — B: 1.5 mm (0.06 in)
• Code: X33-1-0629 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 18 mm (0.709 in) — B: 1.5 mm (0.06 in)
• Code: X33-1-0718 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 20 mm (0.788 in) — B: 2 mm (0.079 in)
• Code: X33-1-0867 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 254 mm (10 in) — B: 2 mm (0.079 in)
• Code: X33-1-0952 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 28 mm (1.103 in) — B: 1.5 mm (0.06 in)
• Code: X33-1-0987 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 38 mm (1.497 in) — B: 1.5 mm (0.06 in)
• Code: X33-1-1032 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 42.4 mm (1.67 in) — B: 1.5 mm (0.06 in)
• Code: X33-1-1076 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 44.5 mm (1.752 in) — B: 2 mm (0.079 in)
• Code: X33-1-1484 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 50.8 mm (2 in) — B: 2 mm (0.079 in)
• Code: X33-1-1121 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 54 mm (2.126 in) — B: 2 mm (0.079 in)
• Code: X33-1-1154 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 70 mm (2.756 in) — B: 2 mm (0.079 in)
• Code: X33-1-1198 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 76 mm (2.993 in) — B: 2 mm (0.079 in)
• Code: X33-1-1243 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 88.9 mm (3.5 in) — B: 2 mm (0.079 in)
• Code: X33-1-0388 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 104 mm (4.095 in) — B: 2 mm (0.079 in)
• Code: X33-1-1591 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 108 mm (4.252 in) — B: 3 mm (0.119 in)
• Code: X33-1-1056 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 154 mm (6.063 in) — B: 2 mm (0.079 in)
• Code: X33-1-0587 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 159 mm (6.26 in) — B: 3 mm (0.119 in)
• Code: X33-1-0666 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 204 mm (8.032 in) — B: 2 mm (0.079 in)
• Code: X33-1-0756 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 219 mm (8.623 in) — B: 3 mm (0.119 in)
• Code: X33-1-0806 — Material: AISI 304 — Finish: Polished ext. & Raw int. — A: 25.4 mm (1 in) — B: 1.5 mm (0.06 in)

Technical characteristics / specifications:

• Application: vacuum and fluid transfer
• Materials: AISI 304 and AISI 316 (variants listed in table)
• Finishes: mechanical polished exterior / raw interior or fully raw
• Available sizes: multiple A (diameters) from 14 mm up to over 267 mm according to table; B thicknesses variable (1.5 mm, 2 mm, 3 mm, etc.)
• Technical and commercial documentation available (product sheet and technical datasheet PDF)

Ordering and documentation:

• Select code and material variant from the table when ordering
• Datasheets and drawings available on request
