Manual drum lifter DCR01

leverrotatingstainless steel

Overview

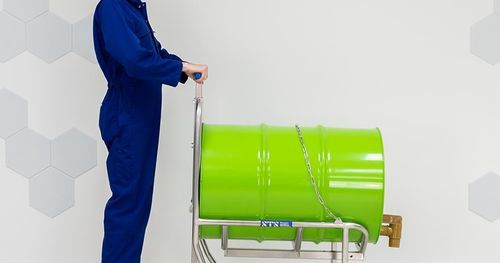

The DCR01 Drum Dispensing Cradle provides ergonomic rotation and controlled decanting of 200–220 L tight-head and flat-sided steel or plastic drums. Built in 304-grade stainless steel, the unit is designed for industrial use where corrosion resistance and hygienic construction are required.

Key features

• Safe drum rotation using leverage and geometry to minimise operator effort (manual input <25 kg).
• 350 mm decanting height suitable for pouring into smaller containers and buckets.
• Compatible with drum trolleys and lifters for easy loading; drums secured by stainless-steel chain.
• Serves as horizontal storage and transport solution for ready-to-use drums.
• 304-grade stainless steel construction for food, chemical and pharmaceutical environments.
• Braked swivel castors for stable positioning during decanting; standard hard-wearing nylon wheels.

Usage notes
Suitable for ergonomic rotation and decanting of straight-sided drums of 200–220 litres. Designed for partial emptying and pour-off operations; for full-drum emptying or higher decanting heights consider dedicated drum rotators.

Specification

• Model: DCR01 (Drum Dispensing Cradle)
• Rated capacity: 300 kg
• Drum compatibility: 200–220 L tight-head and flat-sided steel and plastic drums
• Manual force required to operate: <25 kg
• Dispensing height: 350 mm
• Wheel specification (standard): hard-wearing nylon wheels with rear plated-steel braked swivel castors
• Construction: 304-grade stainless steel
• Loading/unloading: compatible with drum trolleys and drum lifters
• Compliance: CE / UKCA

ATEX variant (DCR01-Ex)
ATEX version available for classified atmospheres. Wheels and bearings are adapted to maintain electrical continuity and grounding; conductive wheel options and stainless-steel braked swivel castors are provided for use in zones 1, 2, 21 and 22.
