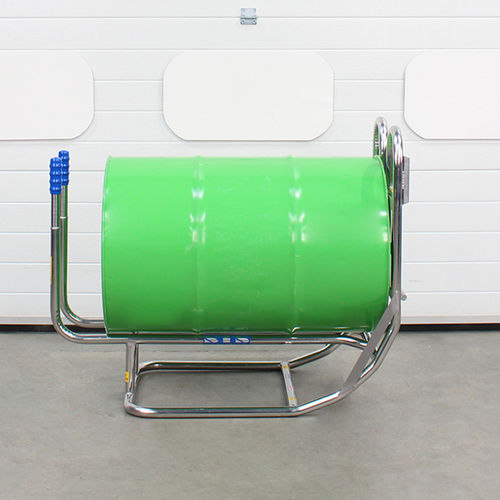

Manual drum lifter DCR02

hand-operatedstainless steelforklift mounted

Overview
The DCR02 drum rollover cradle enables safe transfer of 200–220 L drums from a vertical to a horizontal position for handling and rack storage. It is engineered to position drums so a forklift or stacker can lift them from beneath the cradle.

Key features

• Low operator effort: ergonomic handle heights and rollover geometry allow operators to orient drums up to 300 kg with an input force under 25 kg.
• Safe drum loading: baseplate designed for secure loading using compatible drum trolleys or lifters; optimised for 200–220 L drums (designed for 200 L drums).
• Forklift-compatible design: after rotation, forklifts or stackers can pass beneath to lift the drum for horizontal rack storage.
• 304-grade stainless steel construction: smooth, hygienic finish with high corrosion resistance for food, chemical and pharmaceutical environments.
• ATEX option: Ex-certified variant DCR02-Ex available for use in hazardous gas/dust zones.

Operation and handling
Ergonomic handles and the cradle’s rollover profile reduce manual input force and control the drum during rotation. An operator can push or roll a drum from vertical to horizontal safely and with minimal effort. Once horizontal, a forklift or stacker can lift the drum from the cradle for transport or storage.

Materials and construction
Manufactured in 304-grade stainless steel to provide durability, corrosion resistance and a hygienic surface finish suitable for regulated environments. Welded construction and smooth finishes simplify cleaning and maintenance.

ATEX / hazardous area option
The DCR02-Ex variant is certified for Zones 1, 2, 21 and 22. ATEX units are produced to ensure electrical continuity and grounding; handles are conductive to dissipate static charge. Each unit is supplied with a Declaration of Conformity covering applicable directives and standards.

Included / related functions

• Can be loaded/unloaded using compatible STS equipment such as drum lifting trolleys and drum lifters (manufacturer model references).
• Designed to integrate into complete handling packages including trolleys, lifters and optional ATEX upgrades.

Technical specifications

• Model: DCR02
• Rated capacity: 300 kg
• Manual input force to operate: < 25 kg
• Drum compatibility: tight-head and flat-sided steel and plastic drums 200–220 L (designed for 200 L drums)
• Dispensing height: N/A (see dispensing-specific model DCR01)
• Loading/unloading: compatible with STS models (e.g., DTC01, DTP04, DTP05, DTP08)
• Compliance: CE / UKCA
• ATEX model: DCR02-Ex certified for Zones 1, 2, 21 and 22 (electrical continuity and grounding)
• Construction material: 304-grade stainless steel
