piezoresistive level transmitter / for liquids / for water / stainless steel
ATM/N/T

{{requestButtons}}

Characteristics

  • Technology:

    piezoresistive

  • Medium:

    for liquids, for water

  • Other characteristics:

    stainless steel, submersible, analog, rugged, corrosion-resistant, temperature-compensated, with temperature sensor

  • Applications:

    for storage tanks, for sumps, for atmospheric vessels, for harsh environments, for silos, for OEM, for hygienic applications, for the pharmaceutical industry, for pressurized vessels, low-pressure

  • Level range:

    Max.: 250 m (820'02")

    Min.: 1 m (3'03")

  • Process pressure:

    Max.: 25.14 bar (364.62 psi)

    Min.: 0.01 bar (0.15 psi)

  • Process temperature:

    Max.: 80 °C (176 °F)

    Min.: -5 °C (23 °F)

Description

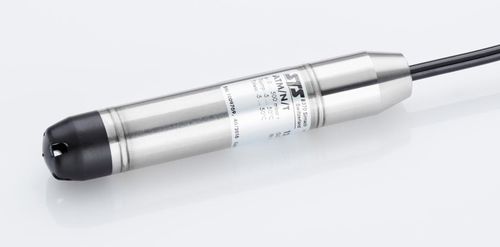

ATM/N/T - Analog Transmitter
Features
Pressure measuring range: 1 … 250 mH2O
Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS
Temperature measuring range: -5 … 80°C
Operating temperature: -5 … 80°C
Process temperature: -5 … 80°C
2 Output signals (p & T): 0 … 10 VDC, 0 … 20 / 4 … 20 mA
Materials: Stainless steel, Titanium
Customer benefits
Fast customization thanks to configurable product design
Short response time suitable for dynamic level measurements
Available with overvoltage protection
Stainless steel and titanium version for use in acidic or otherwise aggressive media
