piezoresistive level transmitter / for liquids / stainless steel / submersible
ATM/N/IS

{{requestButtons}}

Characteristics

  • Technology:

    piezoresistive

  • Medium:

    for liquids

  • Other characteristics:

    stainless steel, submersible, compact, 4-20 mA, intrinsically safe

  • Process pressure:

    Max.: 25.14 bar (364.62 psi)

    Min.: 0.01 bar (0.15 psi)

  • Process temperature:

    Max.: 80 °C (176 °F)

    Min.: -5 °C (23 °F)

Description

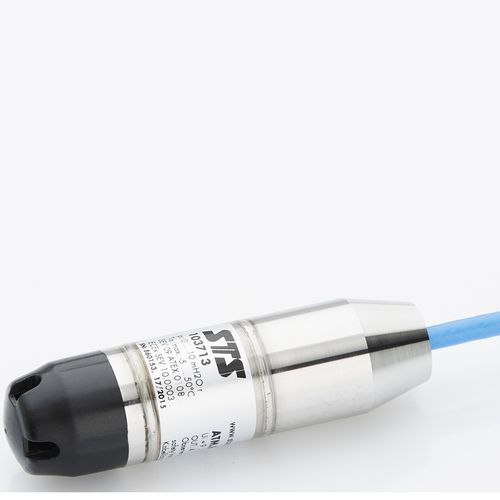

ATM/N/IS - Analog Level Transmitter
Features
Pressure measuring range: 1 … 250 mH2O
Accuracy: ≤ ± 0.50 / 0.25 / 0.10 % FS
Operating temperature: -5 … 80°C
Process temperature: -5 … 80°C
Output signal: 4 … 20 mA
Materials: Stainless steel, Titanium
Customer benefits
Certificate: FM & FM-C
Fast customization thanks to modular product design
Titanium version with PTFE cable available for use in aggressive media
Compact design requires minimal space
Available with overvoltage protection
