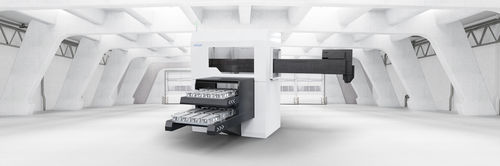

Gantry automatic loader UNILOAD

for workpieces

Overview
uniLoad is a loading solution based on a linear portal cell with two parallel grippers, designed for STUDER machine types S31 and S33 with centre distances of 650 mm and 1000 mm. The system handles shafts up to 650 mm length (max Ø 100 mm) and chuck parts up to 100 mm length (max Ø 260 mm). Parts are supplied via a standardized pallet system. The base module includes an enclosure adapted to the machine design and a standard loading hatch for safe, clean operation.

Benefits

• Standard automation for a wide range of parts
• Intuitive setup wizard for fast commissioning
• Quick setup and changeover in under 15 minutes
• Simple workpiece supply via pallets
• No programming skills required
• Modular and expandable for future needs

Technical specification (table items)
Machine Type: S31 and S33 with centre distance of 650 mm and 1000 mm
Spectrum of parts: Shafts and chuck parts
Autonomy: 5 pallets (depending on part size)
Workpiece dimensions: Chuck parts length up to 100 mm / Shaft parts length up to 650 mm; Chuck parts diameter up to 260 mm / Shaft parts diameter up to 100 mm
Gripping diameter shaft parts: min 6 mm / max 100 mm
Gripping diameter chuck parts: min 6 mm / max 260 mm
Part weight: max 5 kg (alternating operation) / max 15 kg (single gripper)
Workpiece loading time: 10–12 s (alternating); 18 s (single chuck gripper); reprovisioning time 7 s
Control system: Operation via Siemens 9" screen with intuitive user interface
Construction and equipment: Base frame with enclosure and setup door; portal beam with single or dual gripper; pallet/conveyor belt and SPC/NIO output
Installation space approx.: Width 2650 mm, Length 1600 mm
Interface: STUDER B3 Profinet loader interface
Standard gripper sets for shafts: Ø 6–18 mm; Ø 15–30 mm; Ø 29–45 mm; Ø 45–60 mm; Ø 60–80 mm; Ø 80–90 mm; Ø 90–100 mm

Characteristics / technical specifications

• Product: uniLoad
• Compatible machine types: S31, S33 (centre distances 650 mm, 1000 mm)
• Parts handled: Shafts and chuck parts
• Max part length (shaft): 650 mm; Max part length (chuck): 100 mm
• Max part diameter: Chuck Ø 260 mm / Shaft Ø 100 mm
• Gripping diameter ranges: Ø 6–100 mm (shafts), Ø 6–260 mm (chuck)
• Part weight: up to 5 kg (alternating), up to 15 kg (single gripper)
• Autonomy: 5 pallets (depending on part size)
• Loading time: 10–12 s (alternating), 18 s (single chuck gripper)
• Control: Siemens 9" screen with intuitive UI
• Interface: STUDER B3 Profinet loader interface
• Footprint: approx. W 2650 mm x L 1600 mm
• Construction: Base frame with enclosure and setup door; portal beam (single/dual); pallet feeder
• Standard gripper diameters for shafts: 6–100 mm (several kits)
