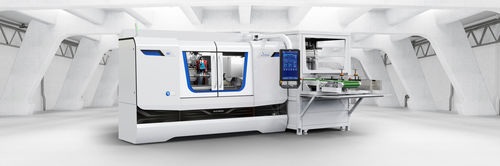

Workpiece automatic loader EASYLOAD

Product overview
Portal loader system easyLoad for STUDER machines S31, S33, S22 and S41. The system is designed as a portal loader with V-gripper for shaft components up to 300 mm in length and a grip diameter of Ø 4–30 mm (max. interfering contour Ø 50 mm). Parts are fed via a standardized, adjustable synchronized conveyor. The base module housing is adapted to the machine design to ensure safe and clean operation.

Benefits

• Standard automation covering a wide range of parts
• Simple and reliable workpiece supply
• No robot programming skills required
• Short delivery time due to standardized solution
• Expandable to meet future requirements

Compatible machines

• S31
• S33
• S22
• S41

Technical specification

• Machine type: S31, S33, S22, S41
• Spectrum of parts: Shaft components, clamping between centers
• Autonomy: Up to 50 workpieces (max. Ø 30 mm)
• Workpiece dimensions: Length 20–300 mm; Grip diameter Ø 4–30 mm; Part diameter up to Ø 75 mm
• Max. part weight: 10 kg (dual chuck gripper) / 5 kg (single chuck gripper)
• Workpiece loading time: 6–8 s (excluding synchronous tailstock)
• Control system: STUDER CNC
• Construction and equipment: Base frame with casing and set-up door; portal module with 1 carriage and NC-axis; two V-arranged gripper units with pneumatic parallel grippers
• Peripheral equipment: Synchronized chain conveyor with V-block for rough parts, adjustable for different part sizes; forward/reverse indexing; synchronized conveyor for finished parts
• Installation space (approx.): Width 1200 mm, Length 2500 mm
