machine foot / stainless steel / steel / leveling
ADHSK, ADHS, ADH
stainless steel, steel
for heavy loads
Max.: 4,500 kg (9,921 lb)
Min.: 3,000 kg (6,614 lb)
24 mm, 30 mm (1 in)

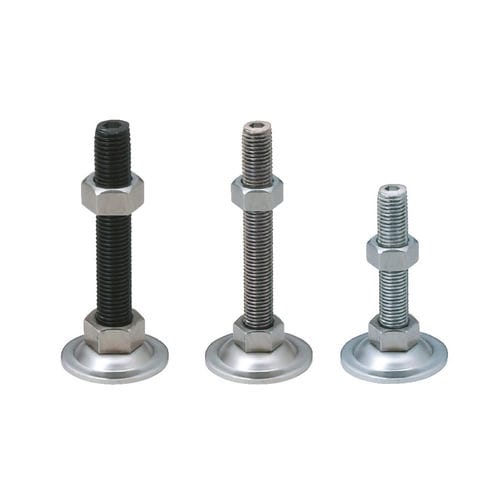

HEAVY DUTY LEVELING GLIDE
●Three types available: Steel ADH, stainless steel ADHS and ADHSK
with anti-galling stainless steel bolt (See the following galling
●ADHSK: Galling preventive treatment allows smoother vertical
●Two types of M24 and M30 screw diameter. enables application to
large machines and furniture.
●Recess for hex key at the screw head allows effective adjustment.
●Machine tools, conveyors, semiconductors, LCD production equipment.
[Galling Preventive Treatment]
Stainless steel is a material with low thermal conductivity and high thermal
expansion coefficient. For this reason, the threaded bolt may expand due
to the frictional heat during tightening, and the male and female thread
may be galled and the bolt may be locked. Even when using ADHS, galling
preventive treatment is recommended.
In ADHSK, by applying a lubricating paint to the threaded bolt and going
through the firing treatment to enhance the slipperiness and adhesiveness,
thread galling is hard to occur.
●To prevent looseness after use, it is recommended to tighten with a double
