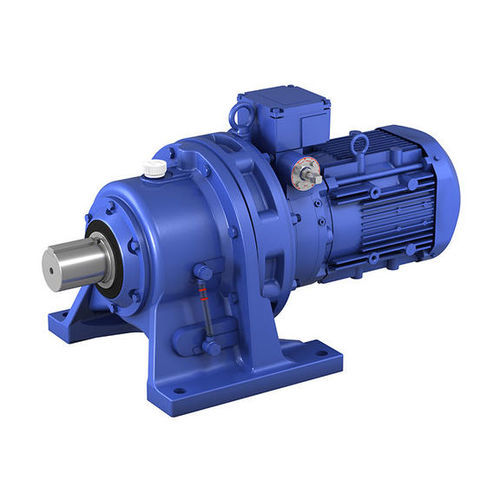

DC gearmotor Cyclo®

three-phaseplanetaryconcentric

Detect overloads instantaneously with installed torque limiter Overview Cyclo gearmotor with installed torque limiter to detect overloads Protects your valuable machines from catastrophic failure. The torque limiting is applied at the drive part, allowing you a more accurate examination of your device safety factor, which makes optimal equipment design possible. Product Features Compact Compact Cyclo® reducer boasts a high reduction ratio, high efficiency, and a small number of parts, including a superior built-in torque sensor (spring / limit switch type, load cell type). High Accuracy and Reliability The sensor base consists of coiled springs or load cells, and features high accuracy and reliability. (Accuracy of configured torque ±5 - ±10%) Allows for Economical Equipment Design The torque limiting is applied at the drive part, allowing you a more accurate examination of your device safety factor, which makes optimal equipment design possible. Operates During Momentary Overload The mechanical torque detection mechanism allows for a shorter detection time compared to thermal relays, detecting overloads instantaneously. Wide Range of Torque Adjustment The adjustment range for configuring the torque is a wide ±25%, which means adjustments can easily be made on-site to match the actual torque of the equipment. (However, it must be within the maximum and the minimum configured torque). Safe Unattended Operation Built-in buzzer and indicator light in the motor operation circuit ensures a safe unattended operation. By using either the double or triple safety models, it is also possible to drive the auxiliary motor for a thickener shaft.
