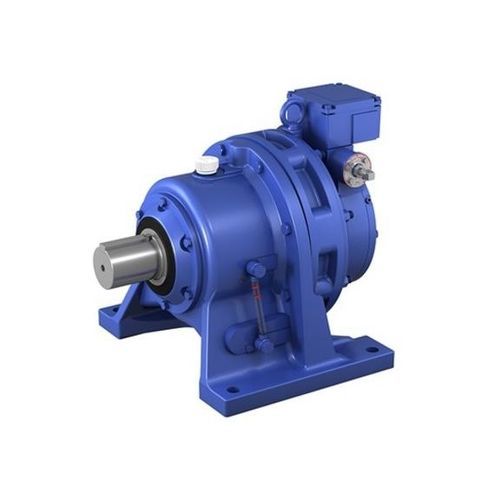

Planetary gear reducer Cyclo®

coaxialsolid-shaft200 - 500 Nm

Detect overloads instantaneously with installed torque limiter Overview Cyclo® reducer with installed torque limiter to detect overloads Protects your valuable machines from catastrophic failure. The torque limiting is applied at the drive part, allowing you a more accurate examination of your device safety factor, which makes optimal equipment design possible. Product Features Compact Compact Cyclo® reducer boasts a high reduction ratio, high efficiency, and a small number of parts, including a superior built-in torque sensor (spring / limit switch type, load cell type). High Accuracy and Reliability The sensor base consists of coiled springs or load cells, and features high accuracy and reliability. (Accuracy of configured torque ±5 - ±10%) Allows for Economical Equipment Design The torque limiting is applied at the drive part, allowing you a more accurate examination of your device safety factor, which makes optimal equipment design possible. Operates During Momentary Overload The mechanical torque detection mechanism allows for a shorter detection time compared to thermal relays, detecting overloads instantaneously. Wide Range of Torque Adjustment The adjustment range for configuring the torque is a wide ±25%, which means adjustments can easily be made on-site to match the actual torque of the equipment. (However, it must be within the maximum and the minimum configured torque) Safe Unattended Operation Built-in buzzer and indicator light in the motor operation circuit ensures a safe unattended operation. By using either the double or triple safety models, it is also possible to drive the auxiliary motor for a thickener shaft Combine with Other Protection Equipment
