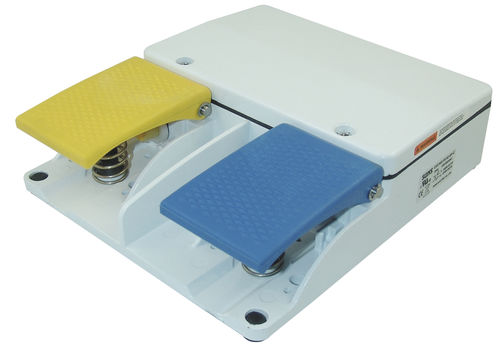

Control foot switch FSC-62
potentiometer2 pedalswaterproof

control foot switch
control foot switch
Add to favorites
Compare this product


Characteristics

Function
control
Technology
potentiometer
Type
2 pedals
Other characteristics
waterproof, IP68
Applications
for medical applications, for dental applications

Description

Features: •Robust aluminum alloy die cast body •Provide a variable resistance output •UL/CSA/CE and CCC approved •Threaded hole available in: PG13.5, M20x1.5 and 1/2NPT Specifications: Operating Frequency 60 ops/min -------------------------------------------------------------------------------- Insulation Resistance >100mΩ@500V DC -------------------------------------------------------------------------------- Contact Resistance <30mΩ(initial) -------------------------------------------------------------------------------- Rated Current/Voltage 10A/250VAC -------------------------------------------------------------------------------- Inrush Current Complies with IEC947-5-1: AC15/DC13 -------------------------------------------------------------------------------- Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts -------------------------------------------------------------------------------- Service Life Mechanically 1 x106 (operations) Electrically 5 x105 (operations) Potentiometer 2.5x105 (operations) -------------------------------------------------------------------------------- Operating Temperature -30~+80oC (-22~176oF) -------------------------------------------------------------------------------- Degree of Protection IP65/NEMA 2,4,13 (IP68/NEMA 6,6P available on request)
