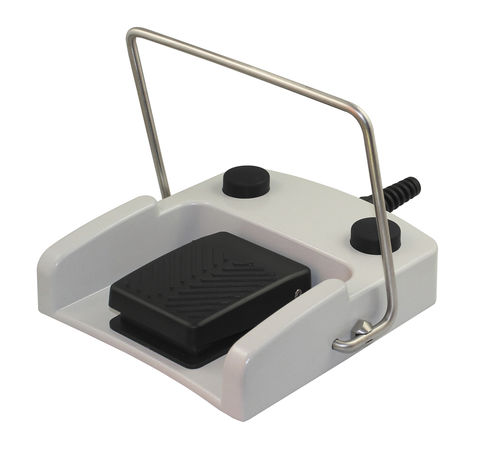

Control foot switch FS-81/82-W-RF
wirelesssingle pedal2 pedals

control foot switch
control foot switch
control foot switch
control foot switch
control foot switch
Add to favorites
Compare this product


Characteristics

Function
control
Technology
wireless
Type
single pedal, 2 pedals
Other characteristics
waterproof, IP68
Applications
for medical applications

Description

Features: •2 wireless technologies available: - 2.4GHz RF wireless - Bluetooth wireless •Removes clutter of wires •Easy to clean and move around •Multiple systems can be used in close vicinity •RF wireless use frequency-hopping spread spectrum (FHSS) RFID technology •Transmitter powered by 4 (AA) batteries •Long battery life Specifications: Operating Frequency 60 ops/min -------------------------------------------------------------------------------- Insulation Resistance >100mΩ@500V DC -------------------------------------------------------------------------------- Contact Resistance <25mΩ(initial) -------------------------------------------------------------------------------- Rated Current/Voltage Receiver output 10A/250VAC -------------------------------------------------------------------------------- Service Life Mechanically 1 x106 (operations) -------------------------------------------------------------------------------- Operating Temperature -30~+80oC (-22~176oF) -------------------------------------------------------------------------------- Protocols IEC802.15.1 -------------------------------------------------------------------------------- Standards EN 300 328,V1.7.1, EN612326-1(2006); EN 301 489-1,V.1.8.1 EN301 489-17,V2.1.1 -------------------------------------------------------------------------------- Degree of Protection IPX8(NEMA 4, 4X, 6, 6P)
