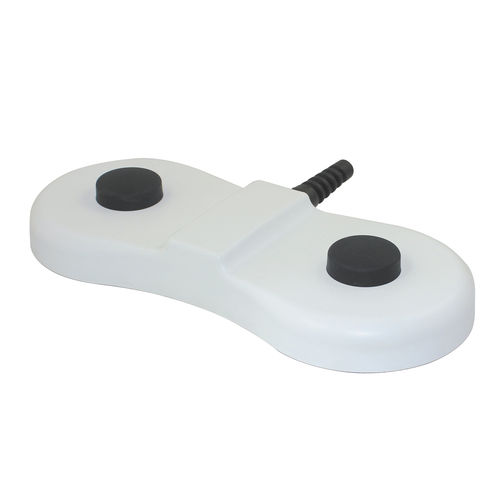

Control foot switch FSB-2/3

electric2 pedalswaterproof

FSB-2/3 Series Medical Foot Switches Features: •Ergonomic low profile design •Button available 2 to 3 •Easy to clean •High mechanical stability •Soft touch button with light operating force Specifications: Operating Frequency 60 ops/min -------------------------------------------------------------------------------- Insulation Resistance >100mΩ@500V DC -------------------------------------------------------------------------------- Contact Resistance <25mΩ(initial) -------------------------------------------------------------------------------- Rated Current/Voltage 10A, 1/2HP, 125/250VA -------------------------------------------------------------------------------- Dielectric Strength 1000VAC for 1 min between current carrying parts 2500VAC for 1 min between non-current carrying parts -------------------------------------------------------------------------------- Service Life Mechanically 1 x106 (operations) Electrically 5 x105 (operations) -------------------------------------------------------------------------------- Operating Temperature -20~+80oC (-4~176oF) -------------------------------------------------------------------------------- Degree of Protection IPX8 (NEMA 4, 4x, 6, 6P)
