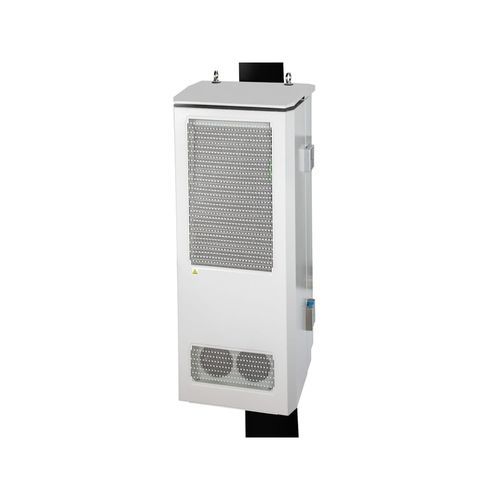

RAID server SYS-E403-12P-IPA2-C

audiovideonetwork

Multi-Access Edge Computing (MEC), 5G Radio Access Network (RAN), Edge AI Inferencing, Vehicle to Everything (C-V2X/V2X), Virtualized Functions and Services, Key Features Operating Temperature -40°C ~ 46°C + Solar load; Cabinet intrusion detection and self-diagnosis; 3 Hot swap fan; Form Factor Enclosure: 319.4 x 786 x 300.4mm (12.58" x 30.95" x 11.83") Package: 650 x 1152 x 700mm (25.6" x 45.35" x 27.56") Processor Single Socket P+ (LGA-4189) System Memory Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Drive Bays Configuration Default: Total 4 bays 4 internal fixed 2.5" SATA drive bays M.2: 1 M.2 PCIe 3.0 x4 NVMe/SATA slot (M-key 2280/22110) Expansion Slots Default 3 PCIe 4.0 x16 FHFL slots On-Board Devices SATA: SATA (6Gbps) via Intel® C621A; RAID 0/1/5/10 support Chipset: Intel® C621A Network Connectivity: 2 RJ45 10GBASE-T with Intel® X550-AT2 Input / Output LAN: 1 RJ45 1 GbE Dedicated BMC LAN port(s) 2 RJ45 10 GBASE-T LAN port(s) (Intel® X550-AT2) Video: 1 VGA port(s) (Rear) TPM: 1 TPM header System Cooling Fans: 3 heavy duty fans with optimal fan speed control(In server) 80x80x38mm Fan(s) Power Supply 1x 680W Gold Level (92%) power supply System BIOS BIOS Type: AMI 32MB SPI Flash BIOS Features: ACPI 6.0 Plug and Play (PnP) Riser Card audio detection support SMBIOS 3.0 or later Management SuperCloud Composer; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New!
