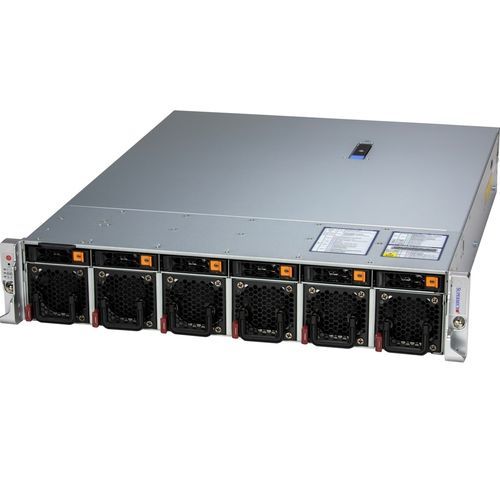

Storage server SYS-222HE-TN

RAIDvideonetwork

Virtualization, Software-defined Storage, 5G Core and Edge, AI Inference and Machine Learning, Cloud Computing, Enterprise Server, Key Features 32 DIMM slots supporting up to 2TB of memory; Optional PCIe slot configurations up to 8 PCIe 5.0 x8 (6FHFL + 2 FHHL) or 4 PCIe 5.0 x16 (3 FHFL + 1 FHHL) slots with support for double-width GPU/Accelerator cards; Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible); 6 Front hot-swap 2.5" NVMe/SAS/SATA drive bays with optional configurations for additional 2 or 4 Rear hot-swap 2.5" NVMe drive baysn (space share with PCIe slots); 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card; Form Factor Enclosure: 436.88 x 88.9 x 574mm (17.2" x 3.5" x 22.6") Package: 598 x 247 x 938mm (23.5" x 9.7" x 36.9") Processor Dual Socket E2 (LGA-4710) Up to 144C/144T; Up to 108MB Cache per CPU GPU Max GPU Count: Up to 3 double-width or 4 single-width GPUs CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: PCIe System Memory Slot Count: 32 DIMM slots Drive Bays Configuration Default: Total 6 bays 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays Option A: Total 8 bays 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays 2 rear hot-swap 2.5" NVMe* drive bays Option B: Total 10 bays 6 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays 4 rear hot-swap 2.5" NVMe* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110/25110) Expansion Slots PCI-Express (PCIe) Configuration: Option A* 3 PCIe 5.0 x16 (in x16) FH/10.5"L double-width slots
