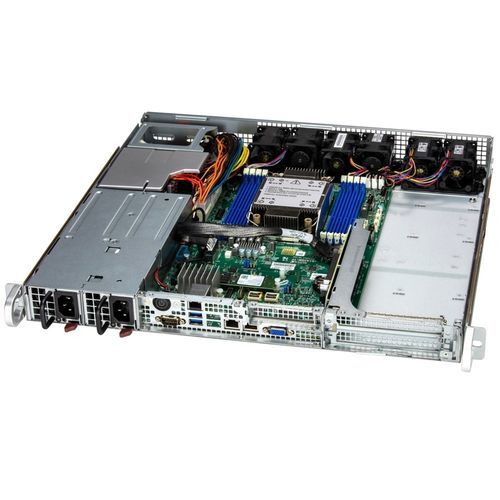

Video server SYS-112B-FWT

networkGPUAI edge

Multi-Access Edge Computing, Flex-RAN, Open-RAN vBBU, Artificial Intelligence (AI) on Edge, DU of 5G Application, Satellite Communication, Key Features 2x FHFL PCIe 5.0 x16; 1x LP PCIe 5.0 x16; Form Factor Enclosure: 436.88 x 44.5 x 429.3mm (17.2" x 1.7" x 16.9") Package: 685 x 203 x 609mm (27" x 8" x 24") Processor Single Socket E2 (LGA-4710) Up to 144C/160T; Up to 60MB Cache GPU Max GPU Count: Up to 1 single-width GPU System Memory Slot Count: 8 DIMM slots/8 Channels Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Supports Intel® Optane™ persistent memory 200 series Drive Bays Configuration Default: Total 2 bays 2 internal fixed 2.5" NVMe/SATA drive bays M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) Expansion Slots PCI-Express (PCIe) Configuration: Default 2 PCIe 5.0 x16 FHFL slots 1 PCIe 5.0 x16 LP slot M.2: 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) On-Board Devices SATA: SATA (6Gbps) Chipset: System on Chip Network Connectivity: 2 RJ45 10GbE with Intel® X550 Input / Output LAN: 2 RJ45 10 GbE LAN port(s) Video: 1 VGA port(s) Serial: 1 COM port(s) (Rear) TPM: 1 TPM header System Cooling Fans: 6x 4cm heavy duty fans with optimal fan speed control Air Shroud: 1 Air Shroud Power Supply 2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies System BIOS BIOS Type: AMI 32MB SPI Flash EEPROM Management SuperCloud Composer; Supermicro Server Manager (SSM); Super Diagnostics Offline (SDO); Supermicro Thin- Agent Service (TAS); SuperServer Automation Assistant (SAA) New! PC Health Monitoring FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
