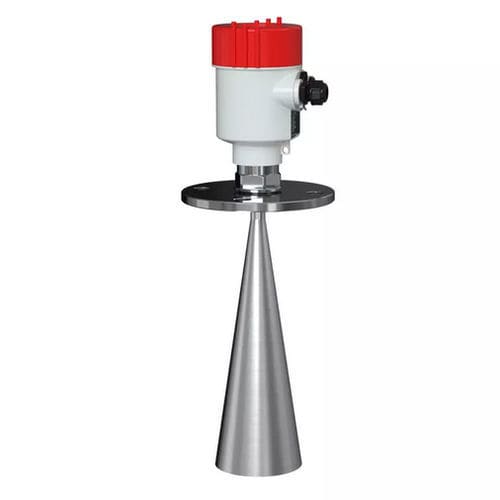

Radar level sensor SUP-RD903for solids4-20 mA2-wire
Add to favorites
Compare this product
Characteristics
- Technology
- radar
- Medium
- for solids
- Interface
- 4-20 mA, 2-wire, Modbus, RS-485
- Applications
- for storage tanks
- Other characteristics
- flange-mount, IP67
- Level range
Min.: 0 m
(0'00" )Max.: 70 m
(229'07" )- Process pressure
Min.: -0.1 bar
(-1.45 psi)Max.: 0.4 bar
(5.8 psi)- Process temperature
Min.: -40 °C
(-40 °F)Max.: 250 °C
(482 °F)
Description
SUP-RD903 Solid material radar level meter with high frequency, measurement of solid material, strong dust, easy to crystallize, condensation occasion
Features
Range: 0~70 m
Accuracy: ±15mm
Application: Solid material, strong dust, easy to crystallize, condensation occasion
Frequency Range: 26GHz
Product - Radar level meter
Model - SUP-RD903
Measure range - 0-70 meters
Application -
Solid material, strong dust, easy to crystallize, condensation occasion
Process Connection - Thread, Flange
Medium Temperature - -40℃~250℃
Process Pressure -
-0.1 ~ 0.3 MPa (universal flange); -0.1～4.0 MPa (flat flange)
Accuracy - ±15mm
Protection Grade - IP67
Frequency Range - 26GHz
Signal Output - 4-20mA (Two-wire/Four)
RS485/Modbus
Power supply - 2-wire（DC24V）/ 4-wire（DC24V /AC220V）
