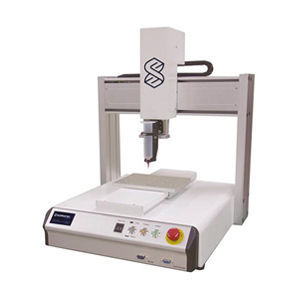

Dispensing robot

Cartesiangantry4-axis

Overview
The 3‑ and 4‑axis dispensing robots provide precision dosing for liquids and pastes with configurable working areas from 200×200 mm up to 600×600 mm and Z strokes of 50 mm or 100 mm. The 4th axis offers full 360° rotation for complex dispensing paths. Drive options include belt, worm or screw (servomotor) for applications requiring higher accuracy or heavier payloads.

General features

• Purge function on control panel and selection of 100 programs on the front panel
• Remote‑control programming for fast setup and simple teach functions
• Compatible with micro‑dispensing valves, tanks and volumetric pumps
• Payload up to 3 kg on table‑top models; DUO option with two independent platens for higher throughput
• Optional atmospheric plasma torch for surface pre‑treatment

Applications and benefits
The stations are suitable for beads, arcs, coatings and dots from a few μL up to high flow rates (up to 250 L/min). They are optimized for automated production lines, providing repeatable deposition, reduced material waste and easy integration into assembly or test stations.

Dispensing station - 3 axis

• Working surface: 300–500 mm
• Axes: 3 (X, Y, Z)
• Z-axis stroke: 100 mm
• Payload: 3 kg
• Table‑top robot with purge function and 100 programs
• Robot programming via remote control (simple)

Dispensing station - 3 axis - 200F

• Working surface: 200 × 200 mm
• Axes: 3 (X, Y, Z)
• Z-axis stroke: 50 mm
• Payload: 3 kg
• Purge function, 100 programs, simple remote programming

Dispensing station DUO - 3 axis

• Two independent platens for higher production rates
• Designed for dosing applications requiring parallel processing
• Purge function and 100 programs on front panel
• Simple programming via remote control

Hybrid • 3 axes

• Screw axes driven by servomotor for higher accuracy and payload
• Working area: 200–500 mm (X and Y)
• Z-axis stroke: 50 mm
• Mobile axes above the working area; suitable for line production

Gantry • 3 axis

• Cartesian gantry with screw axes driven by servomotor
• Working area: 300–600 mm
• Moving axes above the work area
• Optional base plate and configurable beam height for larger assemblies

Dispensing station - 4 axis

• Axes: 4 (X, Y, Z, W)
• Working surfaces: 300–500 mm (models vary)
• Z-axis stroke: 100 mm
• Payload: 3 kg
• Rotation on the 4th axis: 360°
• Purge function, 100 programs on front panel, remote programming

Technical specifications

• Available configurations: 3‑axis and 4‑axis
• Working area ranges: 200×200 mm, 300–500 mm, up to 600×600 mm (gantry)
• Z-axis strokes: 50 mm (200F, Hybrid) and 100 mm (standard 3/4‑axis)
• 4th axis rotation: 360° (4‑axis models)
• Payload: up to 3 kg (table‑top)
• Drive options: belt, worm or screw drives; servomotor for screw axes
• Control: purge function and 100 program selections; remote‑control programming
• DUO: two independent platens for increased throughput
• Integration: compatible with micro‑dispensing valves, volumetric pumps and tanks
• Process: suitable for beads, arcs, coatings and dots from μL scale up to 250 L/min
• Optional: atmospheric plasma torch for surface pre‑treatment
