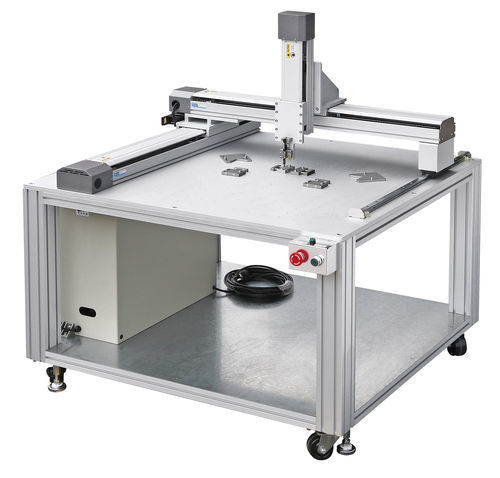

Custom robot Cartesian4-axis3-axis
Add to favorites
Compare this product
Characteristics
- Type
- Cartesian
- Number of axes
- 4-axis, 3-axis, 5-axis
- Function
- dispensing, plasma surface treatment, for bonding, for filling applications, distribution, for resine application
- Application domain
- for the electronics industry, for the automotive industry, for medical applications, for the cosmetics industry, laboratory, for industrial applications
- Other characteristics
- high-precision, custom
Description
Overview
SUPRATEC Syneo offers customised dosing robot solutions with configurable X, Y and Z axes, with axis lengths that can reach several metres. Custom units can be supplied with tailored beam heights and an optional base plate to match installation requirements.
Dispensing station - 5 axis
Five-axis digitised tables (dispensing stations) are designed for precise dosing applications. Control panels include a purge function and a front-panel selection of 100 programs. Programming is simplified via remote control. Standard bench-top robots provide the basic 3 axes (X, Y, Z) with working surfaces from 300 mm to 500 mm; two additional axes are mounted on the Y-axis for full 5-axis movement. The Z-axis stroke is specified at 100m and supports a maximum payload of 3 kg.
Automate your processes easily
Digitised tables enable automation of dispensing processes. Micro-dispensing valves, reservoirs and volumetric dispensing pumps can be integrated into the tables to build a complete, production-oriented dispensing system tailored to specific process requirements.
Optional attachments
Benefits and properties of dispensing stations
Available in standard 3- or 4-axis versions for working areas up to 600×600 mm. Custom solutions start from a 3-axis table and can be expanded with two extra axes to form a 5-axis digitised table, providing enhanced freedom of movement over the part. Cartesian robot designs allow axis lengths and beam heights to be sized to requirement, including multi-metre configurations. Robots can also be mounted on a base plate for stability and integration.
Technical specifications
SUPRATEC Syneo offers customised dosing robot solutions with configurable X, Y and Z axes, with axis lengths that can reach several metres. Custom units can be supplied with tailored beam heights and an optional base plate to match installation requirements.
Dispensing station - 5 axis
Five-axis digitised tables (dispensing stations) are designed for precise dosing applications. Control panels include a purge function and a front-panel selection of 100 programs. Programming is simplified via remote control. Standard bench-top robots provide the basic 3 axes (X, Y, Z) with working surfaces from 300 mm to 500 mm; two additional axes are mounted on the Y-axis for full 5-axis movement. The Z-axis stroke is specified at 100m and supports a maximum payload of 3 kg.
Automate your processes easily
Digitised tables enable automation of dispensing processes. Micro-dispensing valves, reservoirs and volumetric dispensing pumps can be integrated into the tables to build a complete, production-oriented dispensing system tailored to specific process requirements.
Optional attachments
- Atmospheric plasma surface-treatment torch for material pre-treatment
- LED unit for UV curing of adhesive assemblies
Benefits and properties of dispensing stations
Available in standard 3- or 4-axis versions for working areas up to 600×600 mm. Custom solutions start from a 3-axis table and can be expanded with two extra axes to form a 5-axis digitised table, providing enhanced freedom of movement over the part. Cartesian robot designs allow axis lengths and beam heights to be sized to requirement, including multi-metre configurations. Robots can also be mounted on a base plate for stability and integration.
Technical specifications
- Axes: configurable X, Y, Z (lengths can reach several metres); custom beam heights available
- Standard configurations: 3-axis or 4-axis; expandable to 5-axis (2 additional axes mounted on the Y-axis)
- Working area (standard versions): up to 600 × 600 mm
- Table-top robot working surfaces: from 300 mm to 500 mm
- Z-axis stroke: 100m (as stated)
- Maximum payload on Z-axis: 3 kg
- Control panel functions: purge; front panel with selection of 100 programs
- Programming: remote control for simplified robot programming
- Integration: compatible with micro-dispensing valves, reservoirs and volumetric dispensing pumps
- Mounting: can be mounted on a base plate
