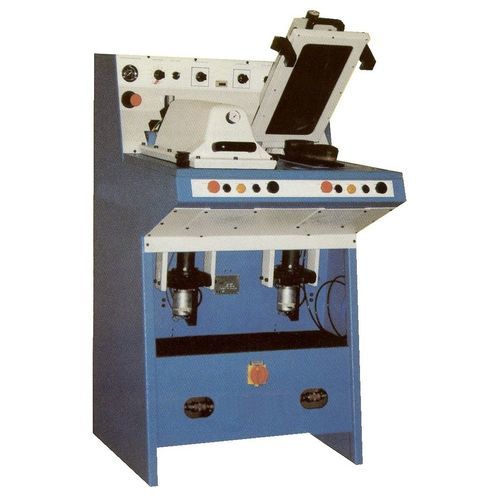

Sole press SA PASM

pneumaticmotorizedelectronic

Product overview
Designed and manufactured by SUTEAU-ANVER, the SA PASM sole attaching press is a 2-station machine for KNEIPP and GOODYEAR processes. It ensures precise sole welding across footwear types and accepts quick-change tooling for size range 16–48.

Applications

• Sole welding for sandals, court-shoes, boots, slippers and walking shoes
• Compatible with KNEIPP and GOODYEAR manufacturing processes

Technical features

• Microprocessor control with automatic program for shoes and semi-automatic program for boots and special operations
• Integrated operator safety systems and consistent welding quality
• Vacuum retraction of the rubber membrane to prevent sole displacement before pressing; membrane inflation in under 1 second
• Adjustable and precise pressing time control
• Motorized adjustable horn height
• Two rubber membrane options with anti-staining, first-quality resistance: standard membrane and reinforced double-thickness membrane for leather soles, court-shoes and sandals; independent drive allows membrane replacement without stopping the machine

Options

• 2 stations
• Carousel

Technical specifications

• Width: 81 cm
• Depth: 88 cm
• Height: 140 cm
• Net weight: 305 kg
• Air consumption per cycle at 6 bar: approx. 48 liters
