Pneumatic press 600AC

for gluingrubberfor soles

Overview

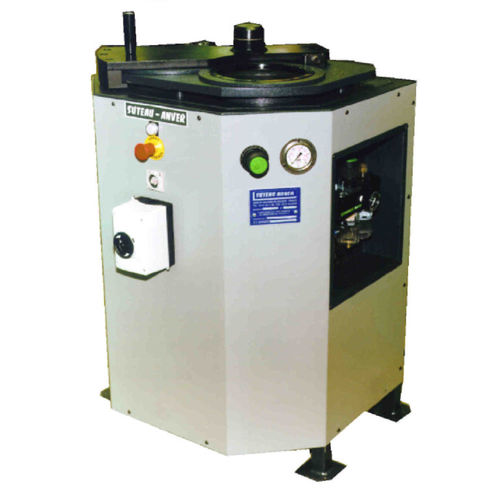

Designed and manufactured by SUTEAU-ANVER, this two-station pneumatic sole attaching press is specially designed for tennis, barefoot, basketball and coated shoes. It provides an adjustable pressure of 2 to 6 Kgs applied instantly and evenly distributed on all angles without deformation regardless of sole edge height.

Key features

• 2 stations (two rubber bag stations)
• Adjustable pressure range: 2 to 6 Kgs
• Instant pressure application, uniformly distributed on all angles
• Prevents deformation regardless of sole edge height

Technical features

• Fitted with 2 rubber bags Ø 220 mm
• Pneumatic pressure and holding time regulation
• Production up to 600 pairs in 8 hours

Characteristics / Technical specifications

• Manufacturer: SUTEAU-ANVER
• Model type: two-station pneumatic sole attaching press (SA 600-AC)
• Pressure range: 2 – 6 Kgs (adjustable)
• Rubber bag diameter: Ø 220 mm (2 bags)
• Pneumatic pressure and holding time regulation
• Estimated production capacity: up to 600 pairs per 8-hour shift
• Application: tennis shoes, barefoot shoes, basketball shoes, shoes with coating
