Hydraulic press 600 seriesrubberfor soleswith pressure regulator
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Applications
- rubber, for soles
- Other characteristics
- with pressure regulator, with pressure bag
- Opening
220 mm
(9 in)- Rate (strokes/min)
150 p/h
- Hydraulic pump power
5,500 W
(18,766.8 BTU/h)- Weight
450 kg
(992 lb)- Overall length
95 cm
(37 in)- Overall width
85 cm
(33 in)- Overall height
1,150 mm
(45 in)
Description
Overview

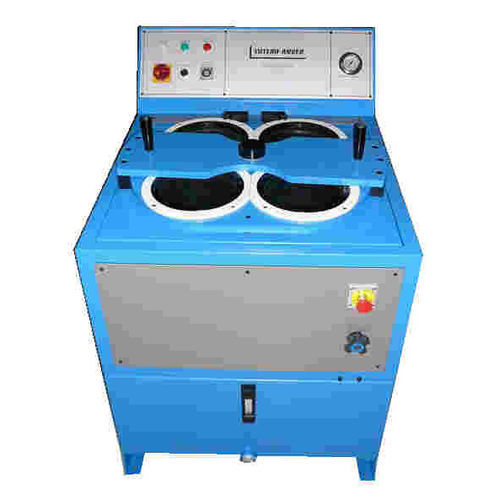

Designed and manufactured by SUTEAU-ANVER, this sole attaching press with 2 or 4 stations is engineered for tennis shoes, barefoot-style footwear, basketball shoes, after-ski boots and any shoes with a coating. Single hydraulic press design provides adjustable pressure from 2 to 12 kg, delivered instantly and evenly across all angles without deformation regardless of sole edge height.
Options
Technical specifications
Designed and manufactured by SUTEAU-ANVER, this sole attaching press with 2 or 4 stations is engineered for tennis shoes, barefoot-style footwear, basketball shoes, after-ski boots and any shoes with a coating. Single hydraulic press design provides adjustable pressure from 2 to 12 kg, delivered instantly and evenly across all angles without deformation regardless of sole edge height.
Options
- 2 or 4 stations
- Different diameters of rubber bags available
Technical specifications
- Equipped with 2 or 4 rubber bags Ø 220 mm (other diameters available on further models)
- Hydraulic pressure regulation and adjustable hold time
- Production capacity: up to 1,200 pairs in 8 hours
- Height: 1,150 mm
- Length: 950 mm
- Width: 850 mm
- Weight: 450 kg
- Electrical supply: 220/380 Volts, 3 phases + earth + neutral, 50 Hz
- Line power: 5,500 Watt
Catalogs
No catalogs are available for this product.
See all of Suteau-Anver‘s catalogsOther Suteau-Anver products
