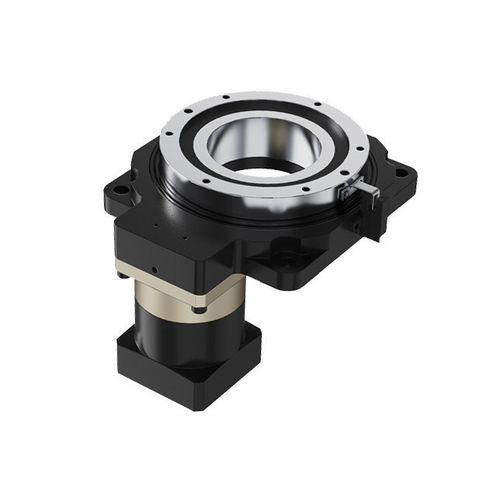

Motor-driven rotary table 85A-05

horizontalverticalhollow

Product Introduction A planetary hollow rotary table is an integrated system combining a planetary gear reducer with a hollow rotary platform, offering a wider range of gear ratios tailored to specific applications. Its core design features a hollow structure, allowing pipelines (e.g., air tubes, electrical cables) to pass through the center of the turntable, eliminating the cable entanglement issues common in traditional rotary mechanisms. Driven by a servo motor, the platform achieves high-precision angular control through gear reduction or worm gear transmission, delivering exceptional rigidity and repeat positioning accuracy. Features - Hollow Structure Design: Central hollow channel enables media transmission (air/liquid/electrical), simplifying equipment layout. Side-mounted motor interface prevents interference between pipelines and moving components. - Integrated Planetary Gear Reducer: Offers multiple gear ratio options to match specific application requirements. - High-Rigidity Support: Precision cross roller bearings with 90° staggered preloaded rollers withstand radial, axial, and overturning loads, delivering 5-10x higher rigidity than conventional bearings. - High Rotational Accuracy: Turntable undergoes secondary grinding to ensure strict geometric tolerances (coaxiality, parallelism), achieving superior rotational precision. - Flexible Compatibility: Compatible with any brand of servo/stepper motors; supports custom flanges and shaft-bore interfaces. Modular design enables horizontal/vertical installation for enhanced scalability. More information please view: https://www.honpine.com/products/Planetary-Reducer/Hollow-Rotating-Table/Worm-Gear-Transmission-Planetary-Hollow-Rotary-Table.html
