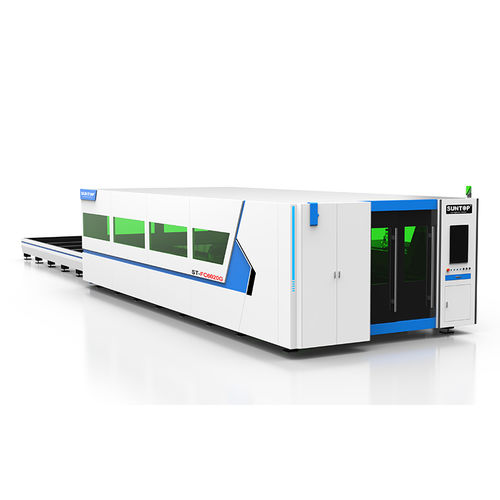

metal cutting machine / fiber laser / sheet metal / CNC
ST- FCL3015-6000F

{{requestButtons}}

Characteristics

  • Material:

    for metal

  • Technology:

    fiber laser

  • Product handled:

    sheet metal

  • Control type:

    CNC

  • Applications:

    for the electronics industry, for the automotive industry, for industrial applications, for medical applications, for thick sheet metal, for carbon steel, for shipbuilding, for metal fabrication, door frame, for aeronautical applications, for steel construction, for metal pipes, for mass production, for thin sheet metal, for doors, heavy-duty, for large parts

  • Other characteristics:

    automatic, high-precision, high-speed, precision, CE, high-performance, 3-axis

  • X travel:

    1,300 mm, 1,500 mm

  • Y travel:

    2,500 mm, 3,000 mm

  • Cutting speed:

    Min.: 1,000 mm/min (0.656 in/s)

    Max.: 19,000 mm/min (12.467 in/s)

  • Laser power:

    1,000 W, 1,500 W, 2,000 W, 3,000 W, 6,000 W

Description

1. Machine general introduction

QY-FCL3015 2000W CNC laser cutting equipment using the original fiber laser source Germany IPG or USA Nlight,

Automatic cutting is controlled by digitalized mechanic system, this machine has condensed the technologies of laser, digital, and precise mechanics.

The laser cutting head can be adjusted through the Z axis, the cutting head travelling area from 0-100mm, the laser cutting head has the automatic tracking functions which can agree with the different metal wave surface ,using the gantry working table and the whole steel welding structure which make the machine very stable movement and almost no distortion.

Fiber transport, flexible processing, suitable for cutting stainless steel, carbon steel, and other kinds of metal materials.

Convenient operation, CAD graphics can be imported for processing, the cutting data preservation of memory.
