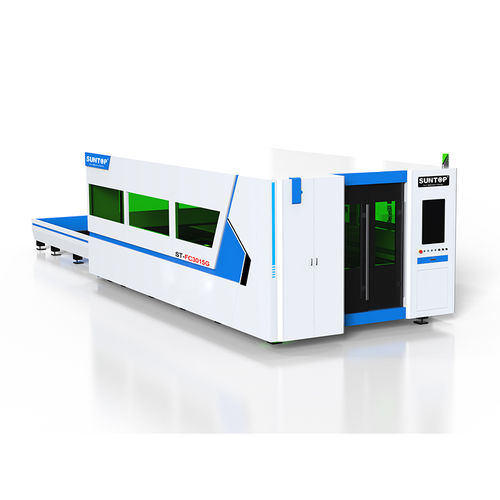

Steel cutting machine ST-FC3015-3000F
for stainless steelfor aluminumfor copper

steel cutting machine
steel cutting machine
steel cutting machine
steel cutting machine
steel cutting machine
steel cutting machine
Add to favorites
Compare this product

Characteristics

Material
for steel, for stainless steel, for aluminum, for copper, for carbon steel, for brass, for titanium, for iron, for precious metals
Technology
fiber laser
Product handled
sheet metal
Control type
CNC
Applications
for metal pipes, for industrial applications, for the automotive industry, for metal fabrication, for aeronautical applications, for thick sheet metal, for doors, for shipbuilding, for steel construction, for mass production, door frame, for the electronics industry, heavy-duty, for thin sheet metal, for medical applications, for large parts
Other characteristics
automatic, high-precision, high-speed, precision, CE, high-performance, 3-axis, with exchange table
X travel

1,550 mm (61 in)

Y travel

3,100 mm (122 in)

Cutting speed

Min.: 1,000 mm/min (0.656 in/s)

Max.: 28,000 mm/min (18.373 in/s)

Laser power

2,000 W, 3,000 W, 4,000 W, 6,000 W

Description

Maintenance-free (low maintenance costs): All-fiber laser optical path entirely composed of fibers and fiber-optic components, welding technology using optical fiber connection between the optical fiber and fiber optic components, the entire optical path is completely enclosed in the optical fiber waveguide. Once this natural all closed optical path is formed, without additional isolation measures can be self-contained, isolated from the external environment to achieve. Resonator fiber grating replaces the lens structure, there is no lens contamination, distortion and so on, so that in case of proper use of fiber lasers, basically no maintenance. Highly automation: This machine adopts digital control, you only need to use CAD to draw the picture and import to specialized software, laser cutting machine can cut out the artifacts you need, moreover there is intelligent typesetting function, thus can save raw material costs to the greatest extent. High cutting efficiency: Due to the transmission properties of laser, laser cutting machine has equipped with many sets of CNC work bench to realize numerical control. You only need to change the CNC program to cut different shape, as well as for two-dimensional cutting, and three-dimensional cutting,there is no contact for work piece and laser head, so there is no tool wear. Machine No need to change "tool" for different shapes parts processing, only need to change the output parameters. Laser, low noise, small vibration, and no pollution while cutting.
