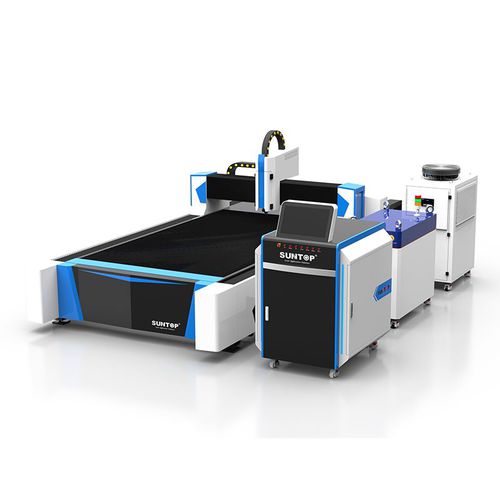

Stainless steel cutting machine ST- FC3015
fiber laserfor steelfor aluminum

stainless steel cutting machine
stainless steel cutting machine
stainless steel cutting machine
stainless steel cutting machine
stainless steel cutting machine
Add to favorites
Compare this product


Characteristics

Technology
fiber laser
Material
for steel, for stainless steel, for aluminum, for copper, for carbon steel, for brass, for titanium, for iron, for precious metals
Product handled
sheet metal, door frame, for thick sheet metal, for metal pipes, for thin sheet metal, for doors
Control type
CNC
Applications
for the automotive industry, for industrial applications, for shipbuilding, for metal fabrication, for aeronautical applications, for the electronics industry, for medical applications
Configuration
3-axis
Other characteristics
automatic, high-precision, high-speed, precision, CE, high-performance, FDA, SGS, for steel construction, for large parts, for mass production, heavy-duty
X travel

1,550 mm
(61 in)

Y travel

3,100 mm
(122 in)

Cutting speed

Max.: 28,000 mm/min
(18.373 in/s)

Min.: 1,000 mm/min
(0.656 in/s)

Laser power

1,000 W, 1,200 W, 2,000 W, 3,000 W, 4,000 W

Description

Single table fiber laser cutting machine (ST-FC3015) Single open table fiber laser cutting machine, easy to use, main parts adopt the imported brand, 3 years warranty. Machine main features: 1, Machine frame, our machine tool is used integrated welding after annealing to eliminate stress, the process of cutting welding stress relief annealing—roughing—VSR—semi-finished-VSR-Finishing, a better solution due to welding and the stress arising from the processing, which greatly improve the stability of the machine, the common thickness range of structure metal profiles from 12-15mm which at least 20 years no deformation. 2, The mechanical transmission part has been tested and calibrated with laser interferometer for many times to ensure the our machine good and stable accuracy even after a few years of use, which is VERY important for end users. 3, Configure with HIWIN linear rail for all axis,to ensure durable and high precision for long time processing. 4, XY axis configure with high accuracy grinding type and rack,Japan Shimpo reducer,high speed and precision can be ensured,Z axis area are transmitting by high accuracy rolling ball screw. 5, Adopt France Schneider AC servo system,large power,stronger torque force,working speed is more stable and faster. 6, Adopt professional swiss Raytools laser cutting head,imported optical lens,focus spot smaller,cutting lines more precise,higher efficiency and better processing quality can ensured. Configure with non-contact auto follow function,ensure the best focal length and cutting effect. 7, Fiber laser transmitting with famous laser Generator, flexible processing,realized high accuracy cutting on every point.

VIDEO
