DC electrical cable SI seriespowerUV-resistantlow-smoke
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- UV-resistant, low-smoke, heat/cold-resistant
- Configuration
- round, stranded
- Core material
- tin-plated copper
- Applications
- for photovoltaic applications
- Number of wire
- single-conductor
- Material of the insulation
- XLPE-insulated, XLPO-insulated
- Color of the insolation
- black, red
- Norms
- IEC
- Other characteristics
- halogen-free, DC
- Nominal voltage
1,000 V, 1,500 V
- Temperature
Min.: -40 °C
(-40 °F)Max.: 90 °C
(194 °F)- Cross-section
Min.: 1.5 mm²
(0 in²)Max.: 35 mm²
(0.05 in²)
Description

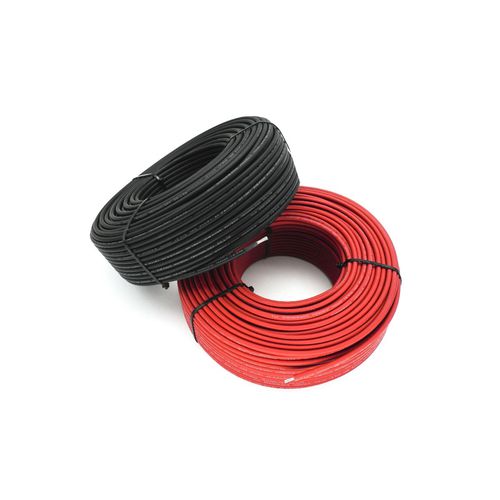

SI Series Photovoltaic DC Cable
1. Key Features
UV resistant.
Low smoke and halogen free.
High flame retardant.
High and low temperature resistance.
Ageing resistance.
25-year service life.
5-year warranty.
2. Characteristics
1) SI-PV1-F Photovoltaic DC Cable
Product Certification
TÜV Rheinland 2PfG 1169
Testing Standard
Cold bending test: EN 60811-1-4
Vertical burning test: EN 60332-1-2
2) SI-62930 IEC131 Dual-core Photovoltaic Cable
Product Certification
TÜV Rheinland IEC 62930 131
Testing Standard
Cold bending test: EN 60811-1-4
Vertical burning test: EN 60332-1-2
3) SI-PV 1500DC-AL Photovoltaic Aluminum Cable
Product Certification
TÜV PPP 11029A 1.5KVDC-AL
Testing Standard
Cold bending test: IEC60811-401
Vertical burning test: IEC60332-1-2
