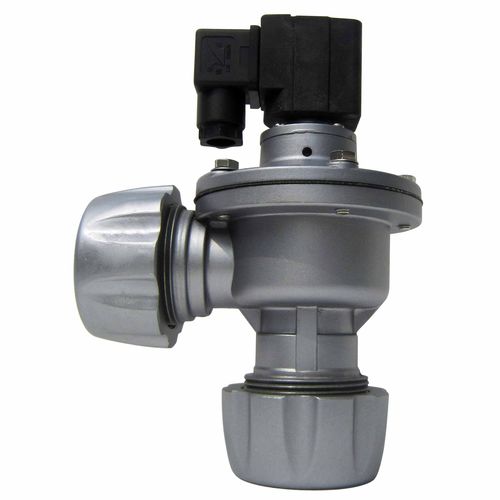

Diaphragm valve DCF-ZM-25 electricfor airpulse
Add to favorites
Compare this product
Go to the Suzhou Xiechang Environmental Protection Technology Co., Ltd. website for more information
Characteristics
- Type
- diaphragm
- Operation
- electric
- Media
- for air
- Other characteristics
- pulse, electromagnetic
- DN
34 mm
(1.339 in)- Pressure
Min.: 400,000 Pa
(58 psi)Max.: 600,000 Pa
(87 psi)- Temperature
Min.: -25 °C
(-13 °F)Max.: 85 °C
(185 °F)
Description
Abstract：
Electromagnetic pulse valve modelDCF-ZM-25Connecting the vent tube outer diameter （mm）Φ34size（mm）A78B70C32D38E192
technical standard
Working pressure: 0.4~0.6MPa
Working medium: clean air
Voltage: DC24V, (AC220V/50HZ)
Use environment:
1 temperature: normal temperature diaphragm -25 ° C ~ 85 ° C
High temperature diaphragm -25 ° C ~ 230 ° C
Low temperature diaphragm -40 ° C ~ 80 ° C
2 The relative humidity of the air does not exceed 85%
Protection level: IP65
Diaphragm life: 5 years or 1 million times
Go to the Suzhou Xiechang Environmental Protection Technology Co., Ltd. website for more information
