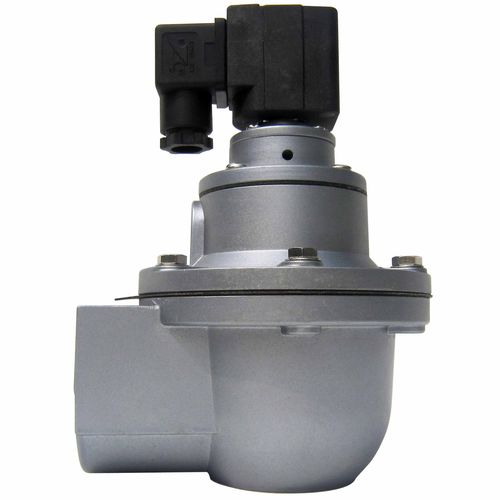

Diaphragm valve DCF-Z-40S
electricfor airthreaded

diaphragm valve
diaphragm valve
Add to favorites
Compare this product


Characteristics

Type
diaphragm
Operation
electric
Media
for air
Body
threaded
Other characteristics
pulse, electromagnetic
Pressure

Max.: 600,000 Pa
(87 psi)

Min.: 400,000 Pa
(58 psi)

Temperature

Max.: 85 °C
(185 °F)

Min.: -25 °C
(-13 °F)

Description

Abstract: Electromagnetic pulse valve modelDCF-Z-40Sφ112A131B180C75D34E28 technical standard Working pressure: 0 4~0 6MPa technical standard Working pressure: 0.4~0.6MPa Working medium: clean air Voltage: DC24V, (AC220V/50HZ) Use environment: 1 temperature: normal temperature diaphragm -25 ° C ~ 85 ° C High temperature diaphragm -25 ° C ~ 230 ° C Low temperature diaphragm -40 ° C ~ 80 ° C 2 The relative humidity of the air does not exceed 85% Protection level: IP65 Diaphragm life: 5 years or 1 million times
