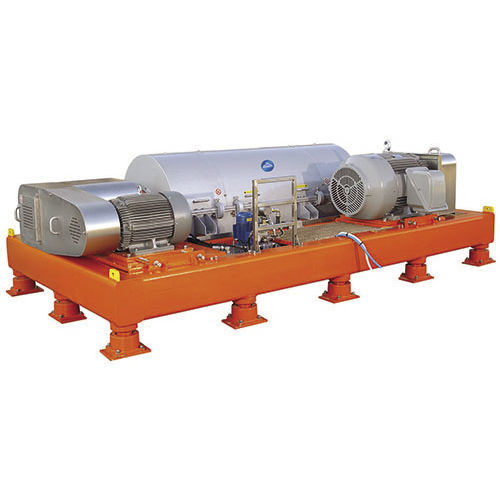

Dehydration decanter CD600

industrialcentrifugalhorizontal

Overview
SWECO decanter centrifuges are engineered for industrial solids/liquids separation where high throughput and reliable performance are required. Built with corrosion-resistant materials and precision-balanced components, these centrifuges deliver long service life and reduced maintenance costs in demanding environments.

414 & 518
The SWECO 414 and 518 models provide high recovery rates and efficient solids separation to minimize disposal costs and to recover valuable material from process streams. Both models are precision-balanced for sustained operation at high RPM, producing very high G-forces for effective dewatering.

• High recovery rates
• Efficient solids separation
• Precision-balanced for smooth high-RPM operation
• Extremely high G-forces

CD500 & CD600
The CD500 and CD600 feature infinite speed adjustability on the main bowl drive and backdrive (differential), enabled by variable frequency drives on all motors for low-current starts and simplified control. Stainless-steel wetted parts, tungsten carbide hard facing on bowl and scroll, and a robust gearbox make these models suitable for heavy-duty, high-volume dewatering and versatile solids separation tasks.

• Infinite speed adjustability of main bowl drive and backdrive
• Variable frequency drives on all motors (low-amperage starts)
• Stainless steel wetted parts
• Tungsten carbide hard facing on bowl and scroll
• Superior gearbox construction

Key Features
Common features across the SWECO decanter range include rugged construction with corrosion-resistant materials, a three-port feed tube, adjustable backdrive speed from -18 to +85 RPM, and tungsten carbide scroll points. The design supports adaptation to many solids separation applications while maintaining low operating and maintenance demands.

• Rugged construction and corrosion-resistant materials
• Three-port feed tube
• Back drive speed adjustable from -18 to +85 RPMs
• Tungsten carbide scroll points
• Adaptable to many solids separation applications

Additional Information
Centrifuge brochure available on request.

Technical specifications

• Models / series mentioned: 414, 518, CD500, CD600
• Application: solids separation, high-volume dewatering, material recovery, environmentally sensitive areas
• Construction materials: corrosion-resistant materials; stainless steel wetted parts (CD500/CD600)
• Hard facing: tungsten carbide on bowl and scroll; tungsten carbide scroll points
• Drive: infinite speed adjustability on main bowl and backdrive (differential) for CD500/CD600
• Motors: variable frequency drives on all motors for low-amperage start-ups
• Feed: three-port feed tube
• Back drive adjustment range: -18 to +85 RPMs
• Performance: precision-balanced, high RPM capability, extremely high G-forces
• Maintenance: designed for long service life and low maintenance costs
