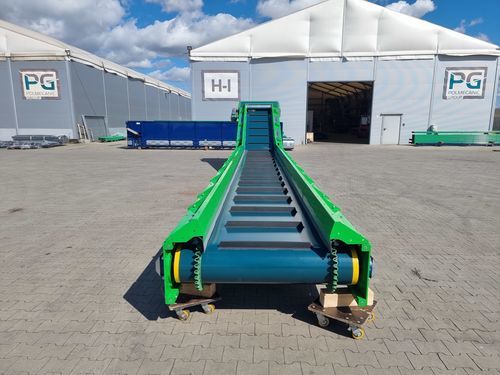

Belt conveyor IBCrecliningtubularangled
Add to favorites
Compare this product
Characteristics
- Technology
- belt
- Form
- reclining, tubular, angled
- Function
- for materials handling, transfer, sorting, recycling
- Construction
- modular
- Drive mechanism
- electric drive, drum motor, motorized
- Transported product
- for bulk materials, for waste
- Applications
- for process applications
- Sector
- for the recycling industry
- Other characteristics
- stainless steel, custom-made, abrasive
- Maximum load
Max.: 1,000 kg
(2,204.623 lb)Min.: 0 kg
(0 lb)- Speed
Max.: 60 m/s
(196.85 ft/s)Min.: 0.5 m/s
(1.64 ft/s)- Effective width
Max.: 2,600 mm
(102 in)Min.: 400 mm
(16 in)- Length
Max.: 25,000 mm
(984.25 in)Min.: 1,000 mm
(39.37 in)
Description
Description
The IBC-type ski-mounted belt conveyor is a modular industrial material-handling solution designed to handle heavy loads and continuous bulk material flows. Developed to withstand the severe abrasive conditions found in waste treatment and recycling plants, its ski-mounted technology ensures maximum belt support, minimising deformation caused by the impact of materials.
Features & Industrial Benefits
Performance options and accessories
Sector-specific applications
Engineering data required
In order to provide you with an accurate quotation, please supply us with:
The IBC-type ski-mounted belt conveyor is a modular industrial material-handling solution designed to handle heavy loads and continuous bulk material flows. Developed to withstand the severe abrasive conditions found in waste treatment and recycling plants, its ski-mounted technology ensures maximum belt support, minimising deformation caused by the impact of materials.
Features & Industrial Benefits
- Ski-mounted belt technology: Provides continuous support beneath the belt, ideal for stabilising heavy materials, reducing premature wear and preventing sagging
- Modular tubular frame: A robust structure that can be customised in length and width to fit your plant’s layout exactly.
- High abrasion resistance: Field-proven design for handling aggressive materials, extending the service life of the equipment.
- Simplified maintenance: Exclusive use of standardised spare parts, ensuring rapid supply and a drastic reduction in machine downtime
Performance options and accessories
- Belt cleaning: Scraper and brush systems to remove residues and maintain optimum performance
- Mechanical protection: Integrated stone guard to preserve the integrity of the drums and prevent accidental blockages
- Stainless steel design: Optional stainless steel modules for corrosive environments or those subject to high humidity
Sector-specific applications
- Sorting centres and waste treatment plants (organic waste, non-hazardous industrial waste, separate collection schemes)
- Recycling, shredding and recovery lines for metals or plastics
- Conveying of industrial bulk materials with high bulk density
Engineering data required
In order to provide you with an accurate quotation, please supply us with:
- Material characteristics: Nature of the product, particle size and bulk density
- Load capacity: Target throughput required in tonnes per hour (t/h) or in m³ per hour
- Line dimensions: Total length and desired belt width (Standard range: 600 to 2000 mm | Customised range: 400 to 2600 mm)
- Layout: Installation constraints and integration into an existing line.
