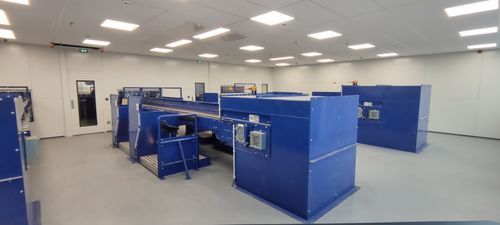

Sorting conveyor TBC

beltscraperhorizontal

Description
The TBC belt conveyor is a high-performance industrial solution designed specifically for the manual sorting of bulk materials and the management of waste streams. Developed to meet the demands of the most challenging recycling and recovery environments, this conveyor combines modularity, durability and operator ergonomics.

Industrial benefits

• High-strength tubular frame: A rigid, mechanically welded structure ensuring maximum durability under heavy loads and minimising vibrations
• Modular architecture: Allows for bespoke configuration and seamless integration into existing processing lines.
• Simplified maintenance (reduced OPEX): Exclusive use of standardised spare parts to minimise spare parts stock and reduce downtime
• Abrasion resistance: Belts and components selected to withstand the mechanical stress caused by abrasive materials (glass, rubble, metals).

Performance options

• Belt scraper: Continuous cleaning to prevent the return of fine particles
• Motorised bristle brush: Final cleaning for sticky materials
• Stone ejector: Protection of the drum against foreign objects
• Stainless steel module: Ideal for corrosive or damp environments

Applications

• Recycling centres (CS)
• Household waste (DMA) and industrial waste (DIB) treatment plants
• Material recovery centres and fine sorting stations
• Bulk materials recycling industries

Information required for your quotation request
Each TBC conveyor is configured to meet your facility’s specifications:

• Flow rate: expected throughput in t/h or m³/h, density and type of fractions
• Standard belt widths (mm): 600 | 800 | 1000 | 1200 | 1600
• Effective length: Made to measure (configurable according to the number of operator stations)
• Frame: Modular tubular
• Material compatibility: All types of bulk materials, high abrasion resistance
