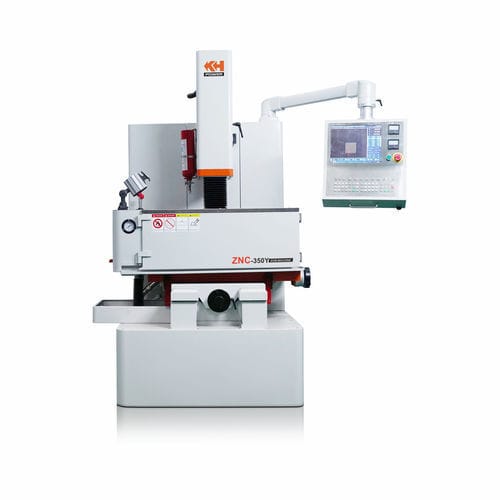

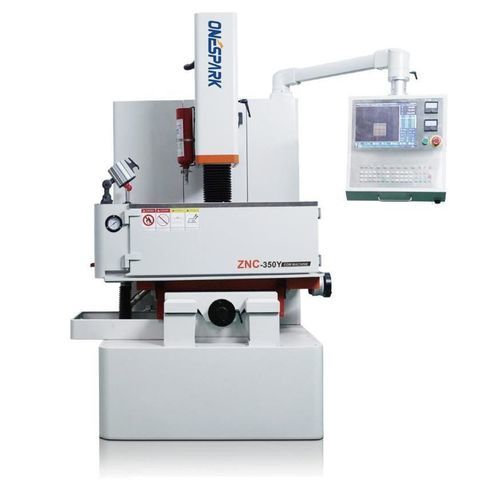

Die sinking EDM ZNC320Yfor mold manufacturing
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- for mold manufacturing
- X travel
300 mm
(11.81 in)- Y travel
200 mm
(7.87 in)- Z travel
200 mm
(7.87 in)
Description
-15 inch LCD display;
-High speed and high precision machining system;
-Mirror processing special circuit;
-Automatic protection circuit for carbon deposition prevention;
-Multi functional hand control box input,simple display.
MODEL: ZNC320Y
Work Table Size(LxW): 500*300
Coordinate Axes Travel:
X axis: 300
Y axis: 200
Z axis: 200
Work Table Size(LxWxH): 785*540*320
Max.electrode Weight: 50kg
Max Loading Of Worktable: 450kg
Distance From Electrode
Plate To Work Table:
Max: 560mm
Min: 360mm
Z axis Two-direction positioning accuracy A:0.009/300mm
Z axis one-direction re-positioning accuracy R+ and R-:0.004/300mm
Z axis of the reverse difference (loss of momentum) B:0.006/300mm
Oil Tank Capacity: 400L
Machine Weight:1200KGS
External Dimension(LxWxH) 1575*1180*2320
