Die sinking EDM ZNY450Y
high-accuracyfor micro-machiningfor small workpieces

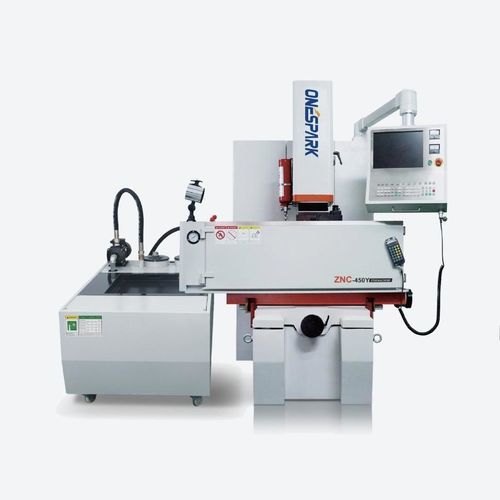

Die sinking EDM - ZNY450Y - SXKH GLOBAL - high-accuracy / for micro-machining / for small workpieces
Die sinking EDM - ZNY450Y - SXKH GLOBAL - high-accuracy / for micro-machining / for small workpieces
Die sinking EDM - ZNY450Y - SXKH GLOBAL - high-accuracy / for micro-machining / for small workpieces - image - 2
Add to favorites
Compare this product
Go to the SXKH GLOBAL website for more information

Characteristics

Type
die sinking
Other characteristics
high-accuracy, for mold manufacturing, for small workpieces, for metalworking tools, for micro-machining
X travel

450 mm
(17.72 in)

Y travel

350 mm
(13.78 in)

Z travel

500 mm
(19.69 in)

Description

MODEL: ZNC450Y Work Table Size(LxW): 700*450 Coordinate Axes Travel: X axis: 450 Y axis: 350 Z axis: 250+250 Work Table Intemal Size(LxWxH): 1205*600*450 Max.electrode Weight: 75 Max Loading Of Worktable: 700 Distance From Electrode Plate To Work Table: Max: 700 Min: 200 Z axis Two-direction positioning accuracy A:0.009/300mm Z axis one-direction re-positioning accuracy R+ and R-:0.004/300mm Z axis of the reverse difference (loss of momentum) B:0.006/300mm Oil Tank Capacity: 500L Machine Weight:1600KGS External Dimension(LxWxH) 1920*1580*2380
