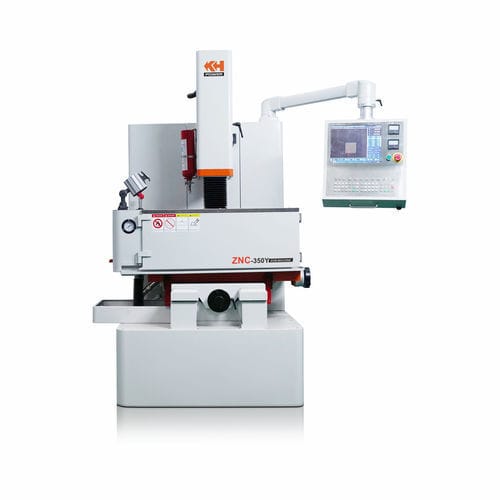

Die sinking EDM ZNC350Yhigh-accuracyfor mold manufacturingfor large parts
Add to favorites
Compare this product
Characteristics
- Type
- die sinking
- Other characteristics
- high-accuracy, for mold manufacturing, for large parts, for metalworking tools
- X travel
350 mm
(13.78 in)- Y travel
250 mm
(9.84 in)- Z travel
400 mm
(15.75 in)
Description
MODEL: ZNC350Y
Work Table Size(LxW): 630*350
Coordinate Axes Travel:
X axis: 350
Y axis: 250
Z axis: 200+200
Work Table Intemal Size(LxWxH): 785*540*380
Max.electrode Weight: 75
Max Loading Of Worktable: 500
Distance From Electrode
Plate To Work Table:
Max: 650
Min: 250
Z axis Two-direction positioning accuracy A:0.009/300mm
Z axis one-direction re-positioning accuracy R+ and R-:0.004/300mm
Z axis of the reverse difference (loss of momentum) B:0.006/300mm
Oil Tank Capacity: 450L
Machine Weight:1300KGS
External Dimension(LxWxH) 1605*1265*2500
