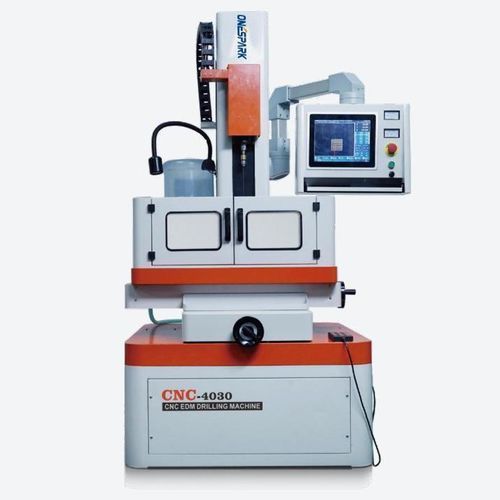

CNC drilling machine CNC4030

verticalEDM

•Spindle adopts DC servo motor drive,greatly improve the machining efficiency; •Spindle run smoothly, low noise; •Processing parameters of the digital display,simple and intuitive; •Operating buttons uses Omron micro switch,the failure rate is greatly reduced. MODEL: CNC4030 Work Table Size(LxW):400*600mm Travel Of Working Table 300*400mm Coordinate Axes Travel: Z axis:350mm W axis: 300mm Max.distance From Guider To Work Table: 50-350mm Max.machining Current: 30 Electrode Diameter: Φ 0.2-3.0 Max.capacity Of Work Table 200 KGS Working Liquid: water Power Supply: 380V/50HZ Total Input Power: 3.5kw External Dimension(LxWxH):1200*1000*2170mm Machine Weight: 800kgs Digital Display: Three Axes Digital
