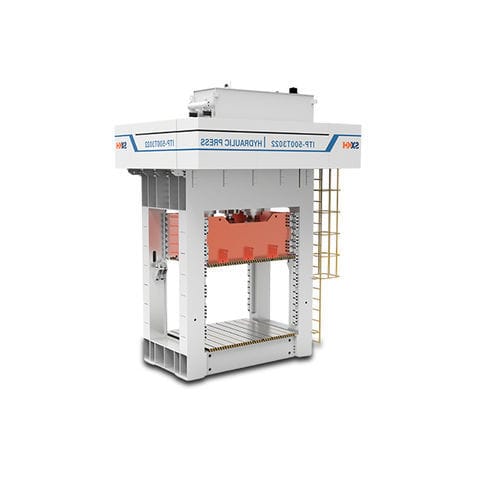

Servo-hydraulic press ITP-150
punchingcuttingfor molding

Servo-hydraulic press - ITP-150 - SXKH GLOBAL - punching / cutting / for molding

Add to favorites

Compare this product

Go to the SXKH GLOBAL website for more information

Characteristics

Operation

servo-hydraulic

Function

punching, process, cutting, for molding

Structure

H-frame, four column

Force

1,500 kN

Opening

1,400 mm
(55 in)

Stroke

1,200 mm
(47.244 in)

Table width

1,500 mm
(59 in)

Table length

2,400 mm
(94 in)

Working speed

Max.: 30 mm/s

Min.: 10 mm/s

Return speed

150 mm/s

Description

Mainly used for automotive interior parts industry such as ceiling, carpet, seat, luggage and other cutting and punching process Why SXKH Siemens S7 series visual intelligent PLC control system. Pre-pressure and exhaust functions can be configured. Four column or H-frame type can be used. It can be applied for molding process of automobile interior parts. (Optional) Oil heating system, steam system, exhaust device. Thanks for the imported hydraulic servo system, the energy can be saved about 40%-60%. And reduce noise by about 20 decibels. Mould parameter storage function, fault diagnosis function.
