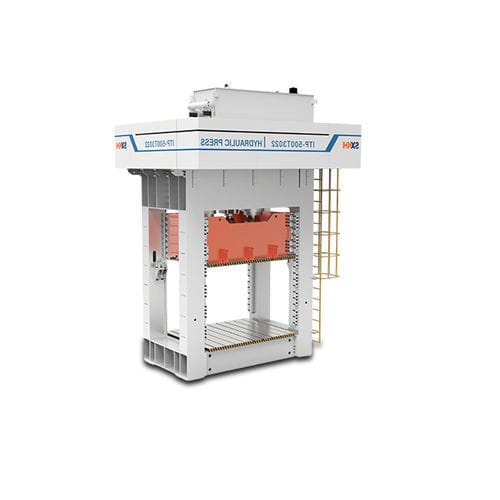

Servo-hydraulic press ITP-200punchingprocesscutting
Add to favorites
Compare this product
Characteristics
- Operation
- servo-hydraulic
- Function
- punching, process, cutting, for molding
- Structure
- H-frame, four column
- Force
2,000 kN
- Opening
1,600 mm
(63 in)- Stroke
1,400 mm
(55.118 in)- Table width
1,500 mm
(59 in)- Table length
2,400 mm
(94 in)- Working speed
Max.: 30 mm/s
Min.: 10 mm/s
- Return speed
150 mm/s
Description
Mainly used for automotive interior parts industry
such as ceiling, carpet, seat, luggage and other cutting and punching process. Can customize 150T-2000T hydraulic press machine.
Key Feature:
such as ceiling, carpet, seat, luggage and other cutting and punching process. Can customize 150T-2000T hydraulic press machine.
Key Feature:
- Siemens S7 series visual intelligent PLC control system.
- Pre-pressure and exhaust functions can be configured.
- Four column or H-frame type can be used.
- It can be applied for molding process of automobile interior parts.
- (Optional) Oil heating system, steam system, exhaust device.
- Mould parameter storage function, fault diagnosis function.
- Thanks for the imported hydraulic servo system, the energy can be saved about 40%-60%. And reduce noise by about 20 decibels.Mainly used for automotive interior parts industry
- such as ceiling, carpet, seat, luggage and other cutting and punching process. Can customize 150T-2000T hydraulic press machine.
